BMW E46 center-console projects often combine two different jobs: moving the HVAC controls for a double-DIN radio or replacing the cup-holder insert with covered storage. Those parts are not interchangeable. This guide separates the choices and directs you to the options currently available for online purchase.
Quick decision guide
| Your project | Part to consider | Key check |
|---|---|---|
| Installing a double-DIN radio in an E46 without factory navigation | HVAC relocation bracket with USB ports | Choose single-row or individual-row controls by inspecting the seams between the buttons. |
| Replacing the center-console cup holder with covered storage | Black European-style storage compartment | Confirm the listed E46 submodel and the surrounding console layout. |
When the HVAC relocation bracket is required
BMW E46 vehicles without factory navigation require an HVAC relocation bracket when a double-DIN radio is installed. The bracket moves the climate-control panel into the lower console area and eliminates the ashtray compartment.

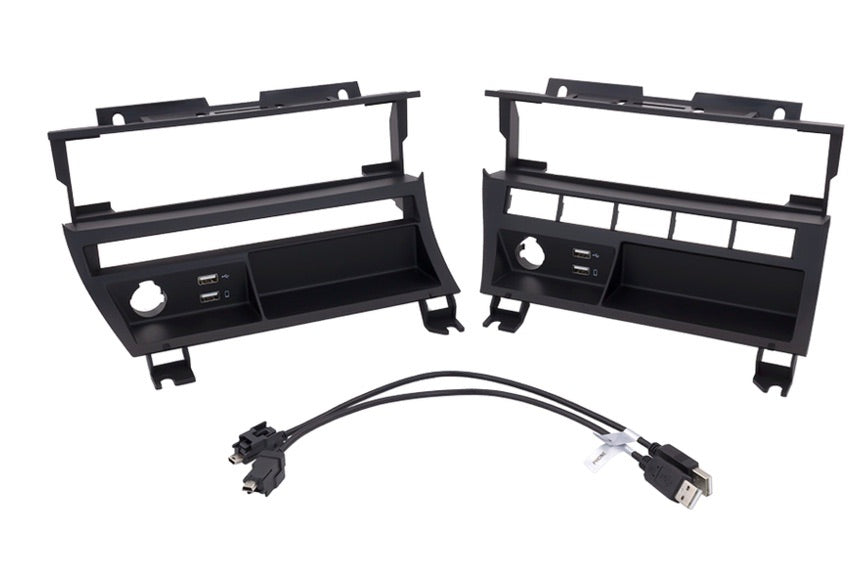

The current EuroCustomsPR bracket includes two USB connections:
- One charging port, described on the product record as 3A or 12V
- One multimedia connection that plugs into the rear of a Dynavin or another compatible aftermarket radio
Shop the BMW E46 HVAC relocation bracket with USB ports
Single-row versus individual-row controls
The number of buttons is not the deciding factor. Look at how the switch panel is constructed.
Choose the single-row bracket when:
- There are no vertical seams between the buttons
- The buttons are housed in one long assembly that pulls out as a unit
- Your panel matches the single-piece style commonly found on newer E46 models, particularly many M3s
Choose the individual-row bracket when:
- Vertical seams are visible between the buttons
- The switches pull out individually
- The panel has one switch plus a separate blank section
If the panel is still unclear, use the EuroCustomsPR contact form and send a clear photo of the switch row before ordering.
What the covered storage compartment changes
The black European-style storage compartment replaces the factory center-console cup-holder insert. It snaps into the console and adds a roller cover over the storage area. It does not relocate the HVAC controls.
The active product record lists fitment for these BMW E46 models:
- 323Ci and 323i
- 325Ci, 325i and 325xi
- 328Ci and 328i
- 330Ci, 330i and 330xi
- E46 M3
Shop the black BMW E46 center-console storage compartment
Can the relocation bracket and storage insert be planned together?
They address different areas of the console: the relocation bracket moves the HVAC panel into the ashtray area, while the storage insert replaces the cup-holder section. Because E46 interiors can have prior radio, console and switch-panel changes, verify the complete layout before ordering both parts for one project.
Frequently asked questions
Do I need an HVAC relocation bracket for every aftermarket radio?
The current bracket is described for E46 vehicles without factory navigation that are being converted to a double-DIN radio. Confirm the existing dashboard configuration and the radio manufacturer's installation requirements.
Does single-row mean I need only one button?
No. The number of buttons is irrelevant. Single-row refers to a long switch assembly without seams between the buttons; individual-row controls have visible seams and separate switches.
Does the relocation bracket retain the ashtray?
No. The product record states that the bracket eliminates the ashtray compartment.
