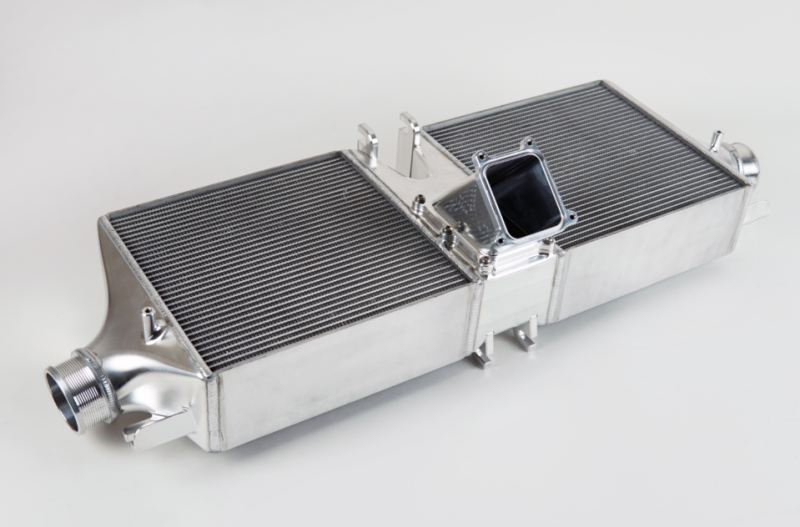

CSF High-Performance Intercooler System — Porsche 992 Turbo & 992.2 Carrera 3.0T
Regular price
$4,799.00
A motorsport-developed, billet-end-tank intercooler system engineered for thermal consistency on supported Porsche 992 Turbo models and non-hybrid 992.2 Carrera 3.0T applications.
Vehicle fitment
- 2020–2025 Porsche 911 Turbo and Turbo S (992)
- 2023–2024 Porsche 911 Sport Classic (992)
- 2025+ Porsche 911 Carrera, Carrera T, Carrera S, Carrera 4S, Targa 4 and Targa 4S (992.2, 3.0L non-hybrid)
- Does not fit the 992.2 Carrera GTS or other 992.2 applications using the hybrid electric motor
Confirm VIN, engine and production date before fulfillment.
Key benefits
- PWR two-row performance-grade core with rolled tubes and inner fins

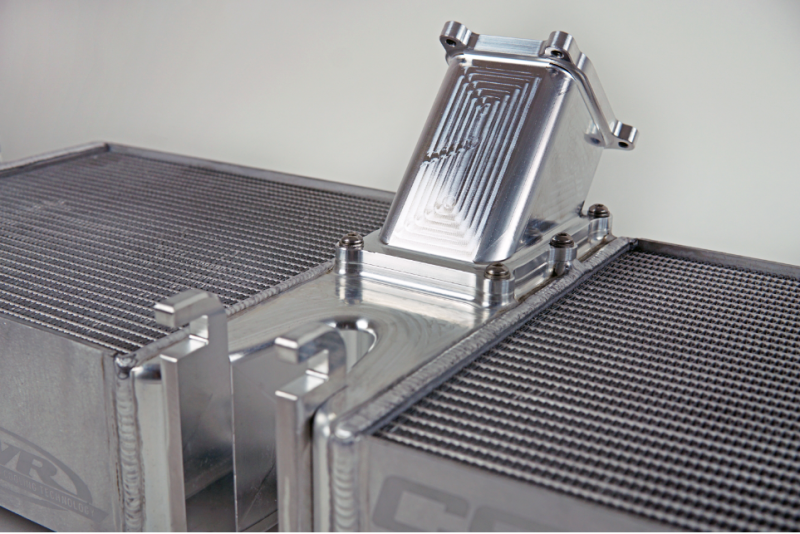

- CNC-machined billet end tanks with integrated Y-pipe connection
- TIG-welded aluminum construction

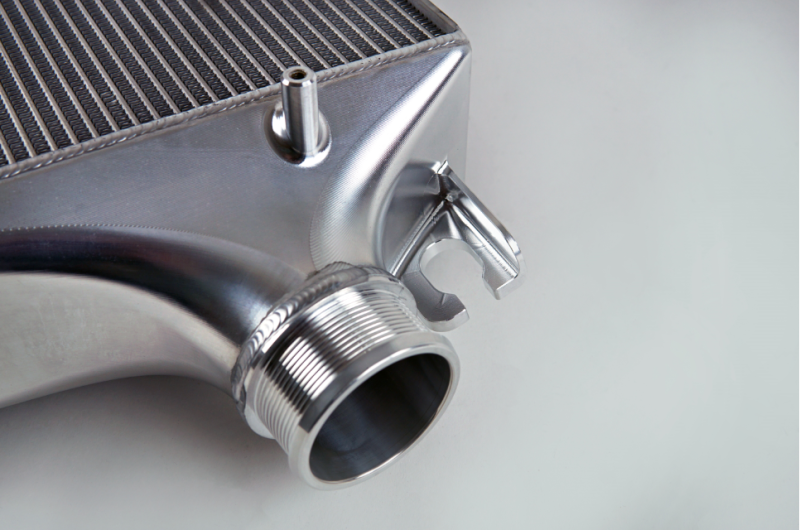

- OEM-style machined inlet and outlet connections
- True plug-and-play, drop-in configuration according to CSF
Technical specifications
- Manufacturer part number: 8188
- 33 core tubes versus 17 in the referenced original design
- 3 mm rolled tubes and 4.85 mm fin height

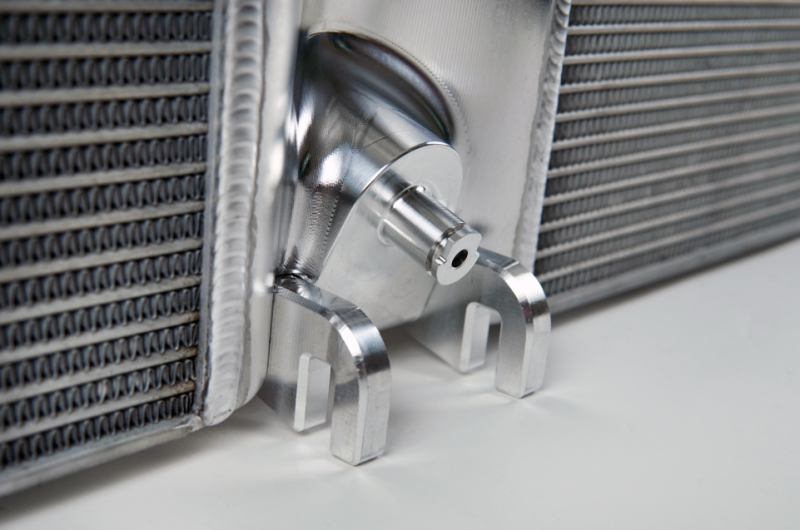

- Three 1/8-inch NPT accessory ports
- Published total weight: 20 lb / 9.07 kg
- Made in the USA by PWR North America
What is included
One CSF #8188 intercooler system as manufacturer packaged. Sensors, optional port fittings, fluids and consumables are not represented as included unless documented on the supplied packing list.
Supporting components
Inspect charge-air connections, seals, clamps and surrounding ducting. Tuning is not represented as required for the intercooler alone; calibration and supporting hardware must match the complete build.
Installation
Difficulty: Advanced. Although CSF describes #8188 as drop-in, access, sealing, pressure checks and final fault inspection make professional installation strongly recommended.
