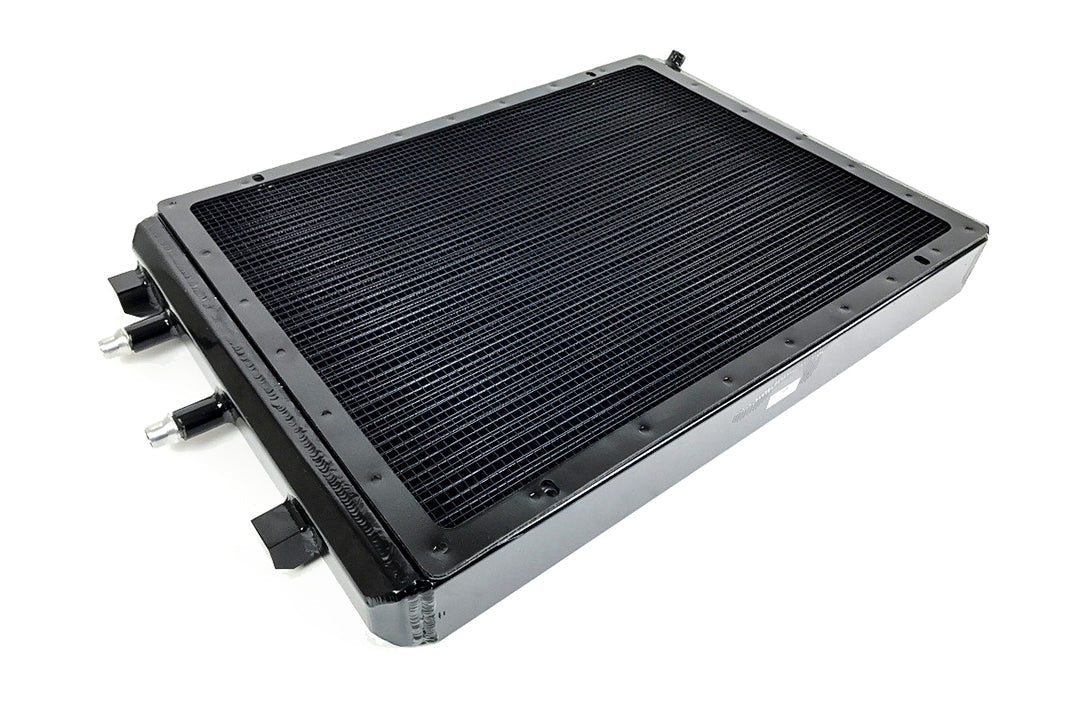

A direct-fit, dual-pass front-mount heat exchanger engineered by CSF for BMW S55-powered F80 M3, F82/F83 M4, and F87 M2 Competition and M2 CS models, with additional manufacturer-listed BMW i8 applications.
Vehicle fitment
- 2019–2021 BMW M2 Competition (F87, S55)
- 2020 BMW M2 CS (F87, S55)
- 2015–2018 BMW M3 (F80, S55)
- 2015–2020 BMW M4 (F82 coupe and F83 convertible, S55)
- 2019–2020 BMW M4 CS (F82, S55)
- 2016 BMW M4 GTS (F82, S55)
- 2014–2017 and 2019–2020 BMW i8 (i12, 1.5L plug-in hybrid)
Fitment is limited to the applications currently listed by CSF for part 8075V. Confirm model, chassis, engine, production date, and existing cooling-system configuration before ordering.
Why upgrade
- Dual-pass flow structure routes coolant across the core twice before exit
- Two-row 42 mm core uses CSF B-tube construction
- Current 2026 specification uses 5 mm track-spec multi-louvered fins
- Removable aluminum rock guard protects the core
- Semi-gloss black finish provides an understated original-equipment-style appearance
Technical details
- Manufacturer: CSF
- Manufacturer part number: 8075V
- Construction: all-aluminum, two-row 42 mm core
- Flow design: dual pass
- Connections: CNC-machined original-equipment-style quick-connect inlet and outlet
- Mounting: CNC-machined brackets and fittings
- Finish: semi-gloss black
- OEM cross references: BMW 17112284608 and 17112459062

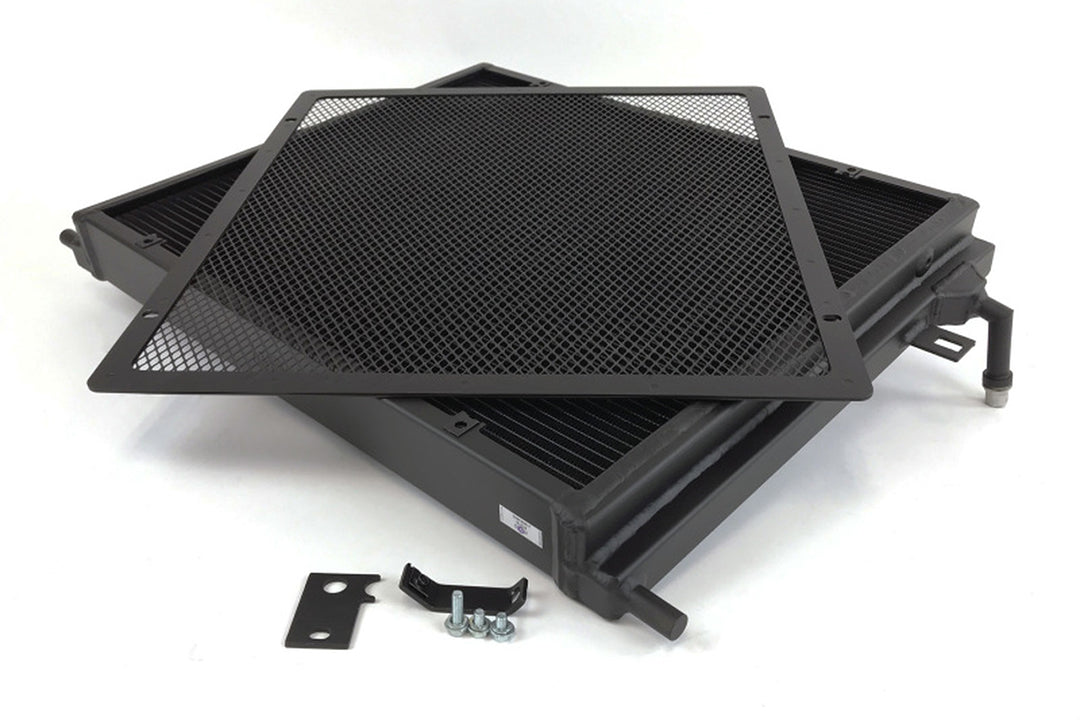

What is included
One CSF 8075V black front-mount heat exchanger and one removable aluminum rock guard. Original hoses, X-brace, ducts, shrouds, and related factory components are reused where serviceable.

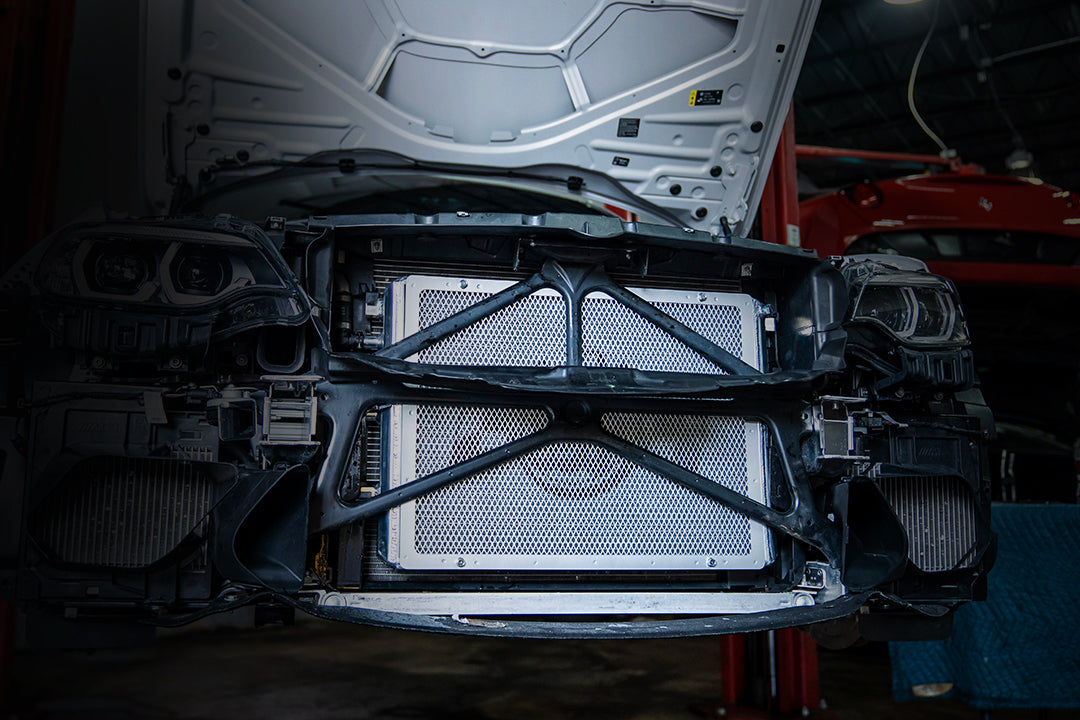

Installation
CSF describes part 8075V as a drop-in-fit system requiring no vehicle modification and retaining the original quick-connect hoses, mounting locations, X-brace, ducting, and shrouding. Professional installation is recommended. The cooling circuit must be correctly drained, filled, bled, pressure-checked, and inspected according to current BMW service information.
Warranty
CSF lists a limited lifetime warranty for part 8075V. Eligibility, exclusions, documentation, and claim handling are governed by CSF's current written warranty terms.
