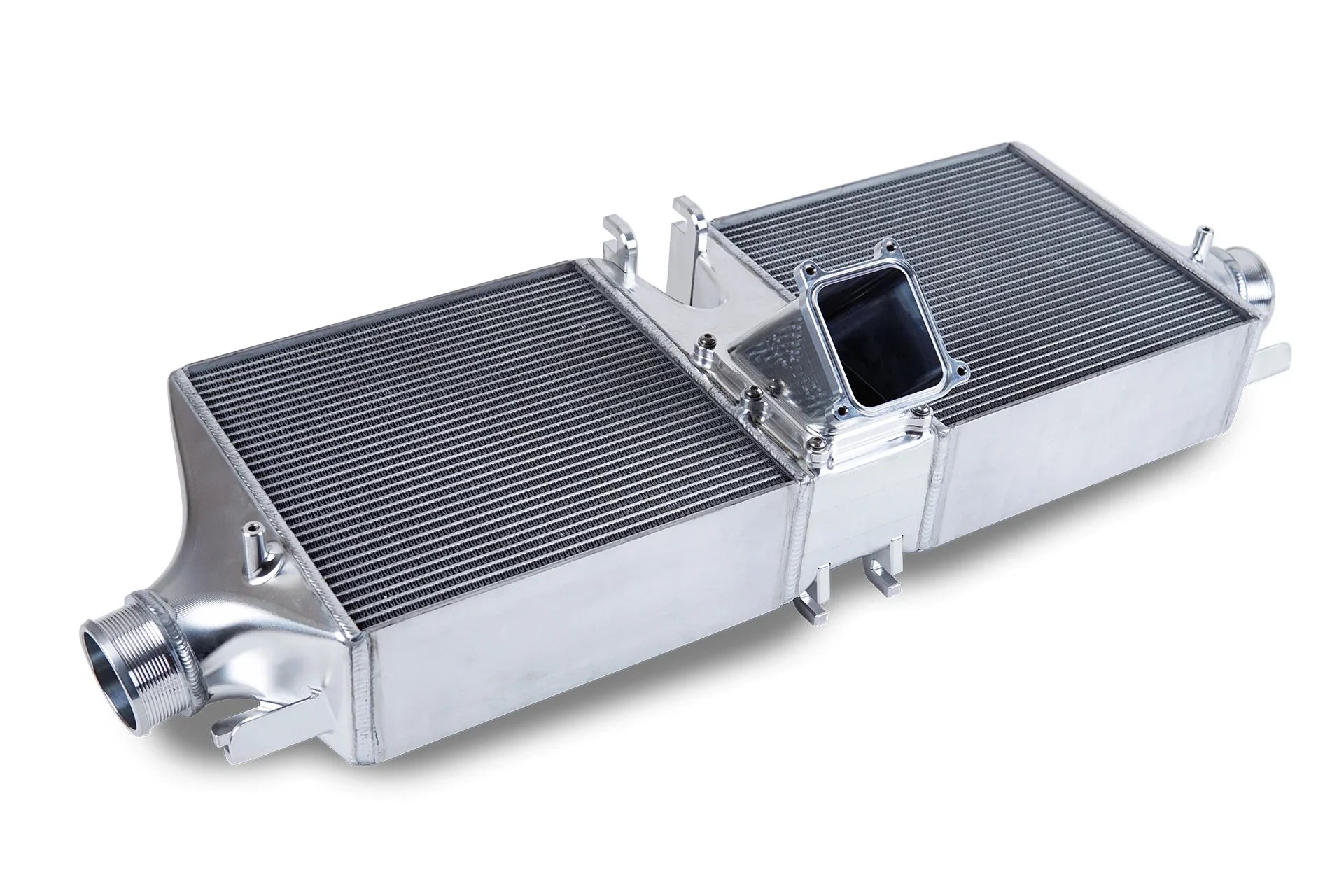

CSF 8188 High Performance Intercooler System — Porsche 992 Turbo / 992.2 Carrera 3.0T

CSF 8188 is a motorsport-developed, billet-end-tank intercooler system engineered for thermal consistency on manufacturer-supported Porsche 992 Turbo models and non-hybrid 992.2 Carrera 3.0T applications.

Vehicle fitment

• 2021–2025 Porsche 911 Turbo and Turbo S (992, 3.7L twin turbo)
• 2025 Porsche 911 Turbo 50 Years (992, 3.7L twin turbo)
• 2023–2024 Porsche 911 Sport Classic (992, 3.7L twin turbo)
• 2025–2026 Porsche 911 Carrera, Carrera T and Carrera S (992.2, 3.0L non-hybrid)
• 2025 Porsche 911 Carrera 4S, Targa 4 and Targa 4S (992.2, 3.0L non-hybrid)

This application is not represented for hybrid 992.2 models, including the Carrera GTS. Confirm VIN, model year, engine, drivetrain and current CSF application data before fulfillment.

Key benefits

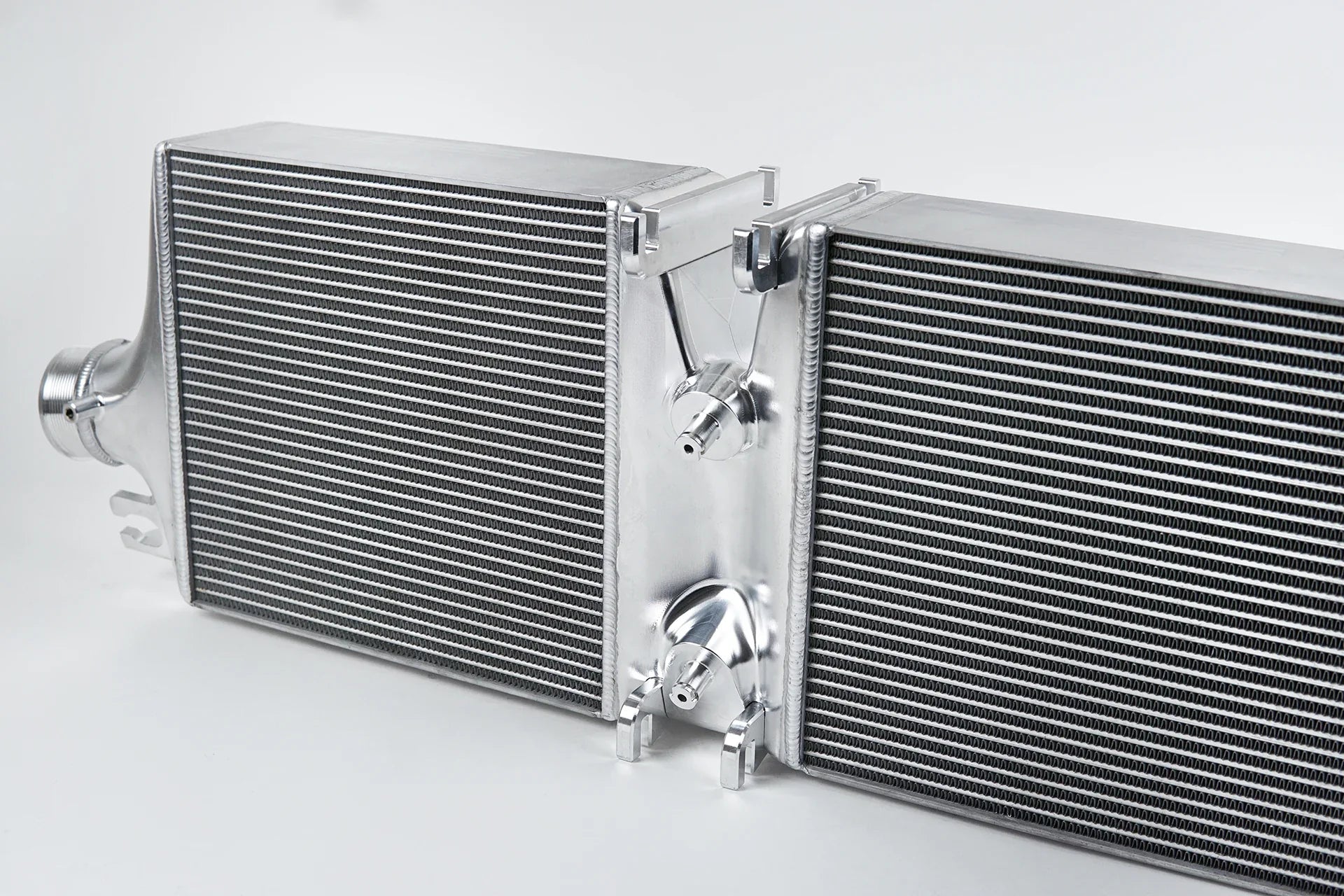

• PWR two-row performance-grade core with rolled tubes and internal fins

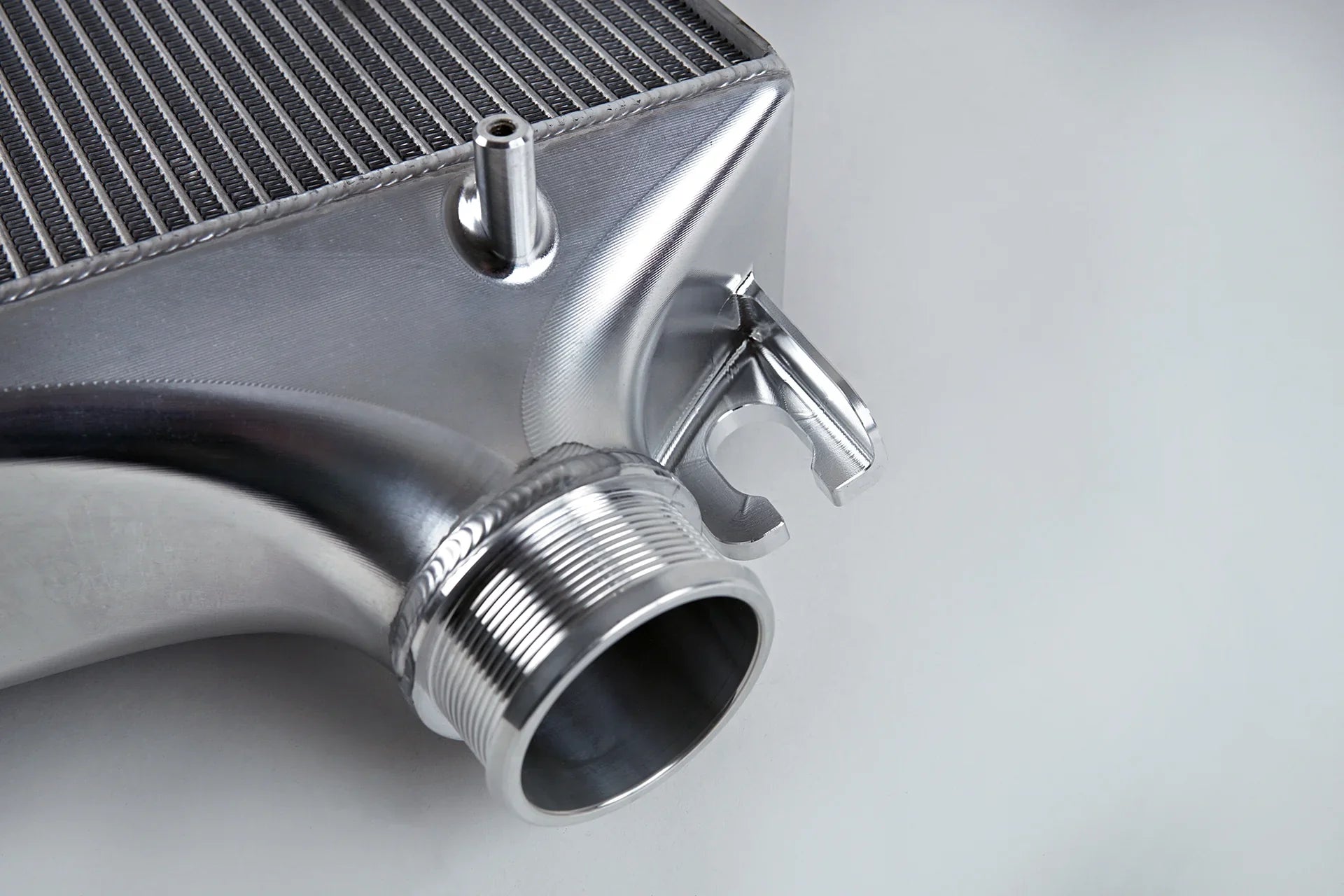

• CNC-machined billet aluminum end tanks with integrated Y-pipe connection
• Fully TIG-welded aluminum construction for high-boost durability
• OEM-style machined inlet and outlet connections
• Designed by CSF as a true plug-and-play, drop-in-fit replacement using the factory mounting points and ducting

Technical specifications

• Manufacturer: CSF
• Manufacturer part number: 8188

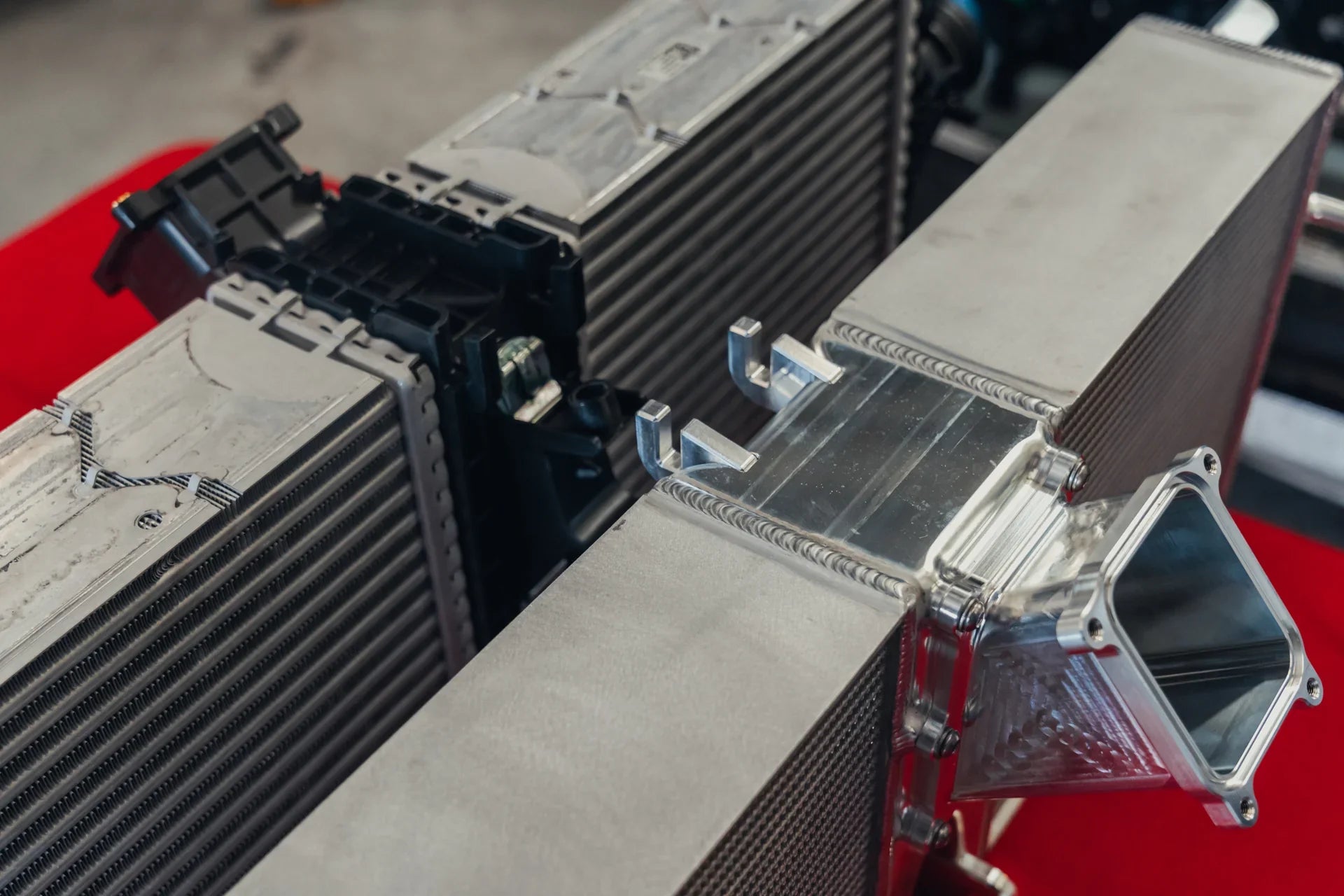

• 33 core tubes versus 17 in the referenced original design
• Two-row core with 3 mm rolled tubes and 4.85 mm fin height

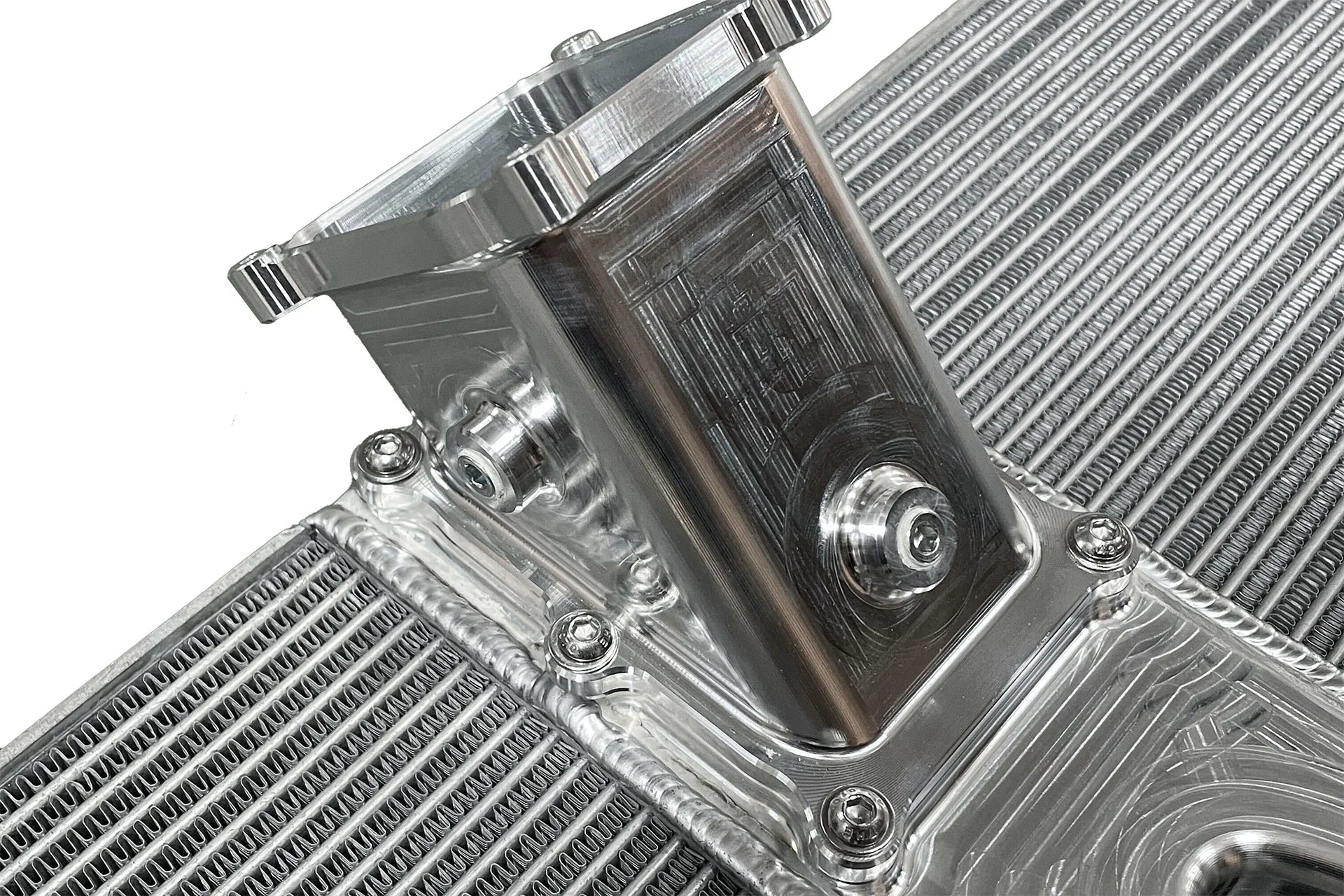

• Three 1/8-inch NPT accessory ports for compatible instrumentation or injection hardware
• Published product weight: 20 lb / 9.07 kg
• Made in the USA by PWR North America

Manufacturer test context

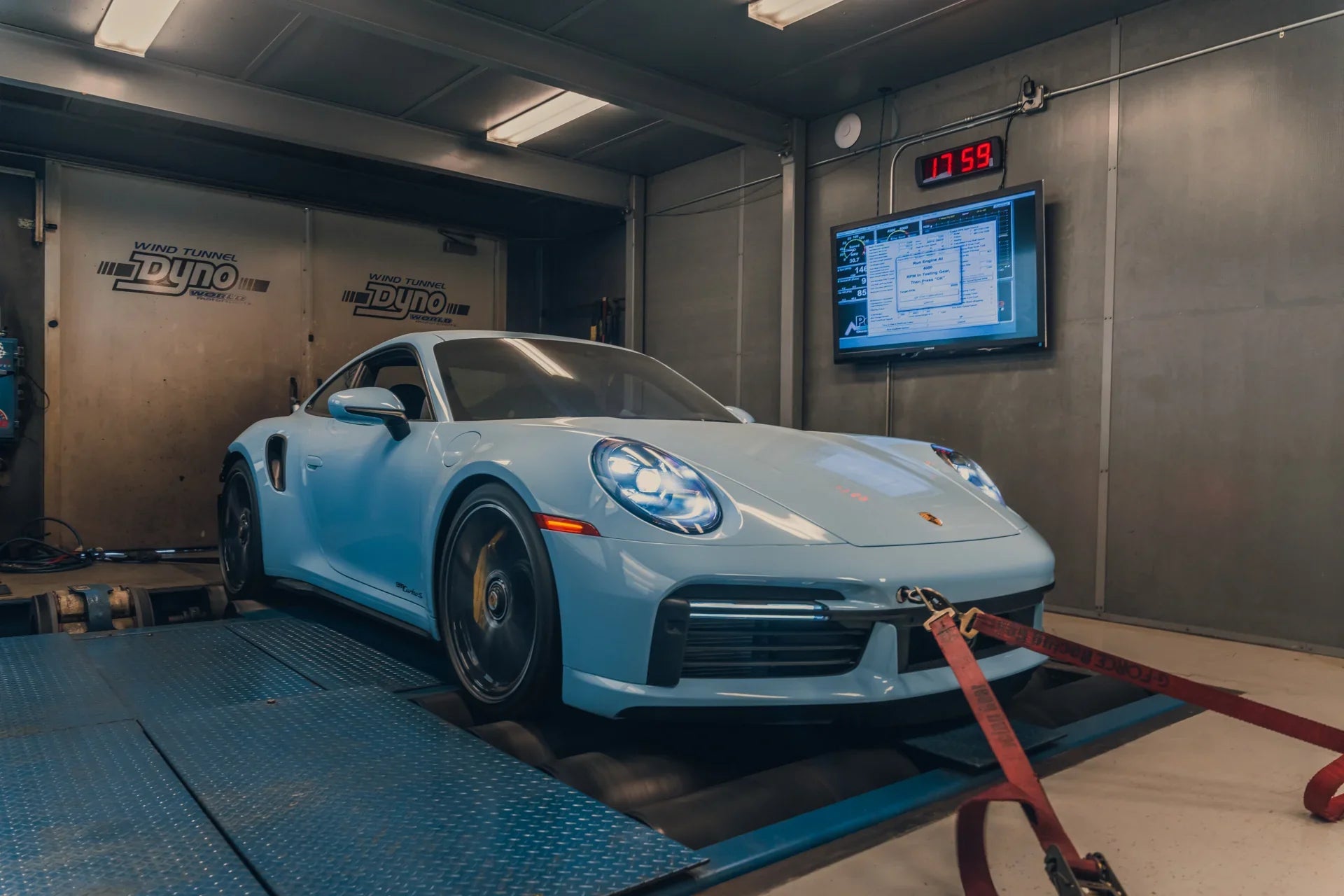

CSF reports chassis-dynamometer validation on a Porsche 992 Turbo S, including improved intercooler efficiency and reduced intake-air temperature compared with the original system under the documented test conditions. CSF also reports approximately 0.5 to 1 psi more pressure drop during that comparison. Results vary with vehicle configuration, calibration, ambient conditions and test method.

What is included

One CSF 8188 intercooler system as manufacturer packaged. Sensors, optional port fittings, fluids and consumables are not represented as included unless documented on the supplied packing list.

Supporting components

Inspect charge-air connections, seals, clamps and surrounding ducting before installation. Tuning is not represented as required for the intercooler alone; calibration and supporting hardware must match the complete vehicle build.

Installation

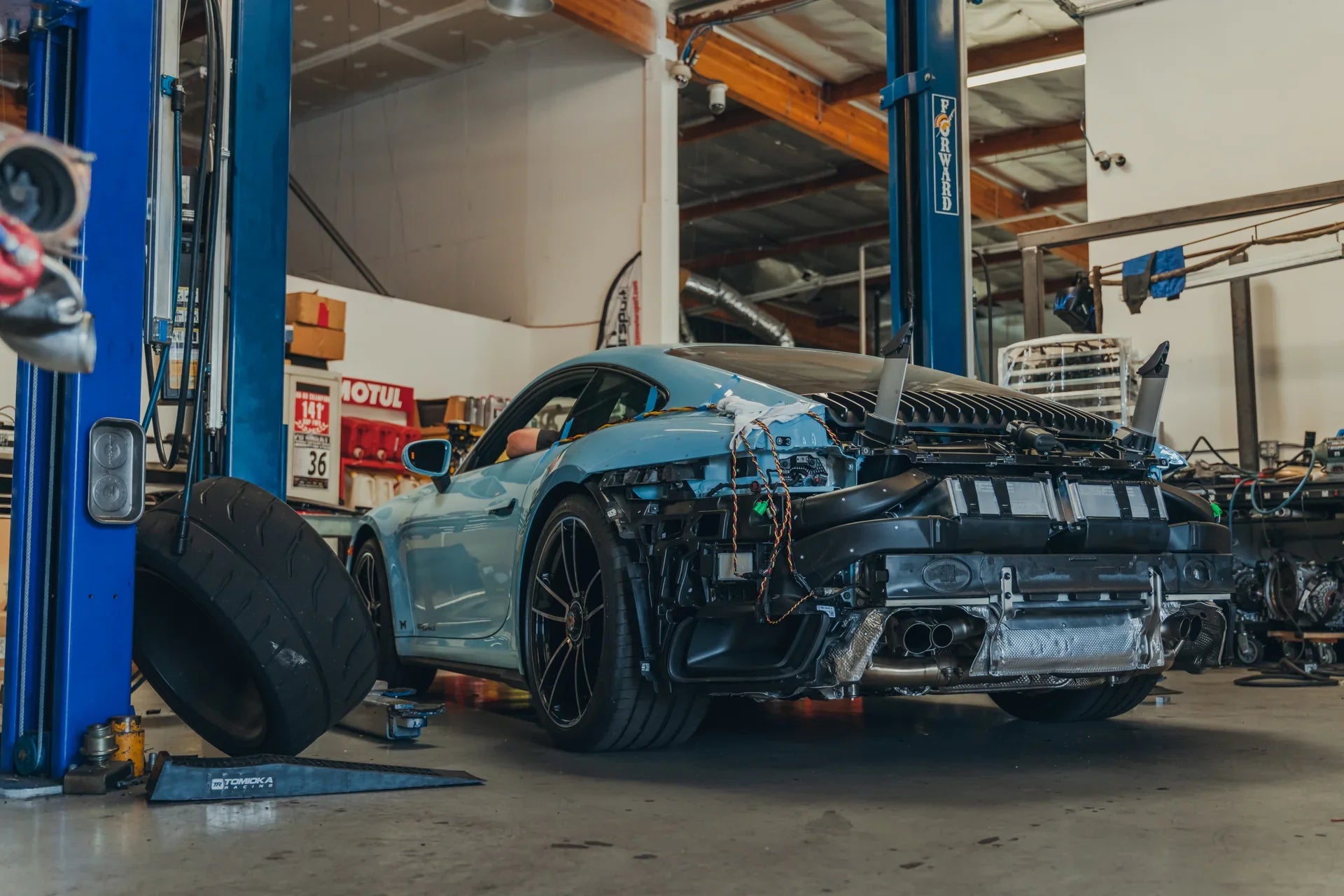

Difficulty: Advanced. Although CSF describes part 8188 as a drop-in-fit system, access, sealing, pressure checks and final fault inspection make professional installation strongly recommended.

Warranty

CSF currently lists a limited lifetime warranty for part 8188. Eligibility, exclusions and claim handling are governed by CSF's current written warranty terms and proof-of-purchase requirements.

Regulatory disclosure

CSF's current product page does not state a specific emissions-compliance classification for part 8188. Confirm the laws and regulations that apply to the vehicle and destination before ordering. This listing does not represent the product as legal for every jurisdiction or application.
