A height- and damping-adjustable Öhlins DFV suspension system for supported Porsche 911 (992) models, designed for road and track use.
Part number POS MU10S1 combines Öhlins Road & Track dampers and springs with separate ride-height adjustment and a single 25-click adjuster controlling compression and rebound.
Vehicle fitment
Öhlins lists the Porsche 911 (992) Carrera, Carrera S, Carrera GTS, Carrera T, Carrera Cabriolet variants, Carrera 4 / 4S / 4 GTS and Cabriolet variants, Targa 4 / 4S / 4 GTS, Turbo / Turbo S, and Turbo Cabriolet variants. Confirm model year, VIN, PASM, and front-axle-lift equipment before ordering.
Key benefits
- Dual Flow Valve (DFV) damper technology.
- One-way, 25-click compression and rebound adjustment.
- Independent ride-height adjustment.
- Rebuildable dampers and corrosion-tested construction.
Technical specifications

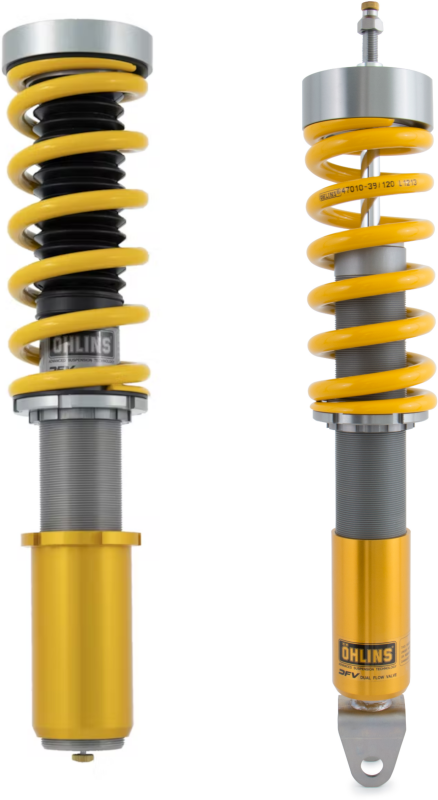

- Front: inverted monotube McPherson struts, 70 N/mm springs, original top mounts.
- Rear: aluminum monotube dampers, 140 N/mm springs, original top mounts.
- Manufacturer lists an approximately 0–20 mm lowering adjustment range front and rear.
- Öhlins' baseline setup is approximately 10 mm lower than original suspension, with final height dependent on vehicle and equipment.
- TÜV approved
What is included

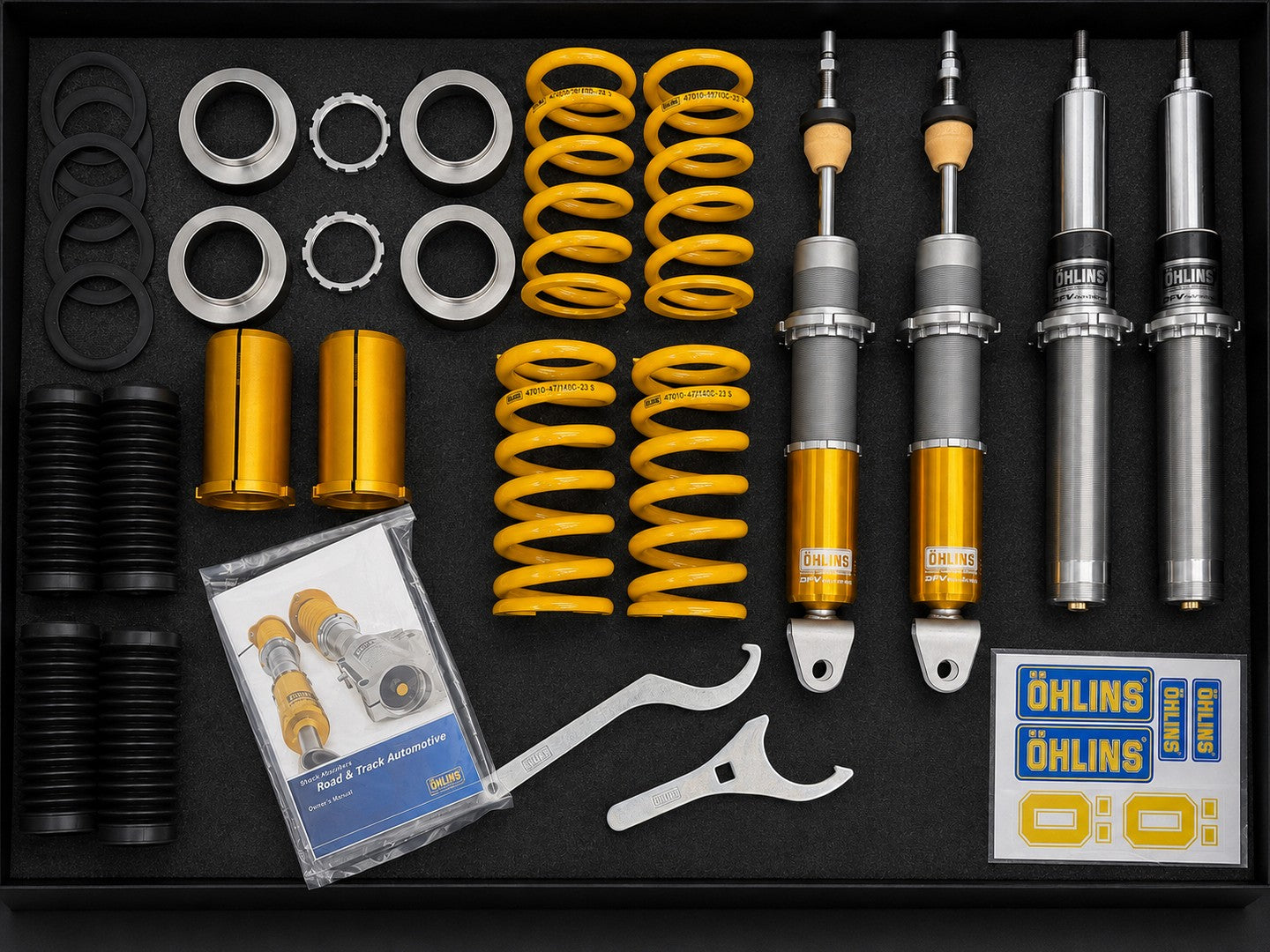

Front and rear shock-absorber assemblies, front and rear springs, dust boots, spacers and spring seats, rear adjustment hardware, C-spanners, sticker kit, and Öhlins owner documentation. Verify the latest kit contents before installation.
Required supporting components
Vehicles equipped with OEM PASM dampers require Öhlins cancellation kit 35020-07. If the vehicle has the factory front-axle lift system, installing this suspension deletes the lift function.
Installation notes
Öhlins strongly recommends installation by an Öhlins dealer. Final settings should follow the current Öhlins manual and the customer's road or track objective.
