Porsche 992 Carrera - OEM GTS Turbocharger Upgrade Kit

Regular price $5,595.00

Designed to fit:

  • 2020 - Present Porsche 911 Carrera (Base)

The 9A2 EVO engine used in all 992 Carreras (based on the 991.2 Carrera 9A2 engine with minor improvements) is a high-performance machine designed for power. Porsche employs identical mechanical components in the base, S, and GTS models. The lightweight aluminum block is reinforced by 150 micron iron-coated cylinder liners utilizing plasma wire transfer arc technology. Furthermore, Porsche has integrated a forged crankshaft, rods, and pistons for a remarkably robust rotating assembly, capable of withstanding increased levels of boost pressure.

Increase the performance of your base Carrera by simply replacing the turbochargers and tuning calibration. Upgrade to GTS turbochargers, which have the ability to increase air flow to the engine, and experience a power boost similar to the S/GTS models. Order the Porsche 992 Carrera OEM GTS Turbocharger Upgrade Kit online today

Turbo Specifications

Model  Turbine Size  Compressor Size  Peak Boost
Base / T  49mm  45mm  12psi
S/GTS 55mm  48mm  16psi/18.6psi

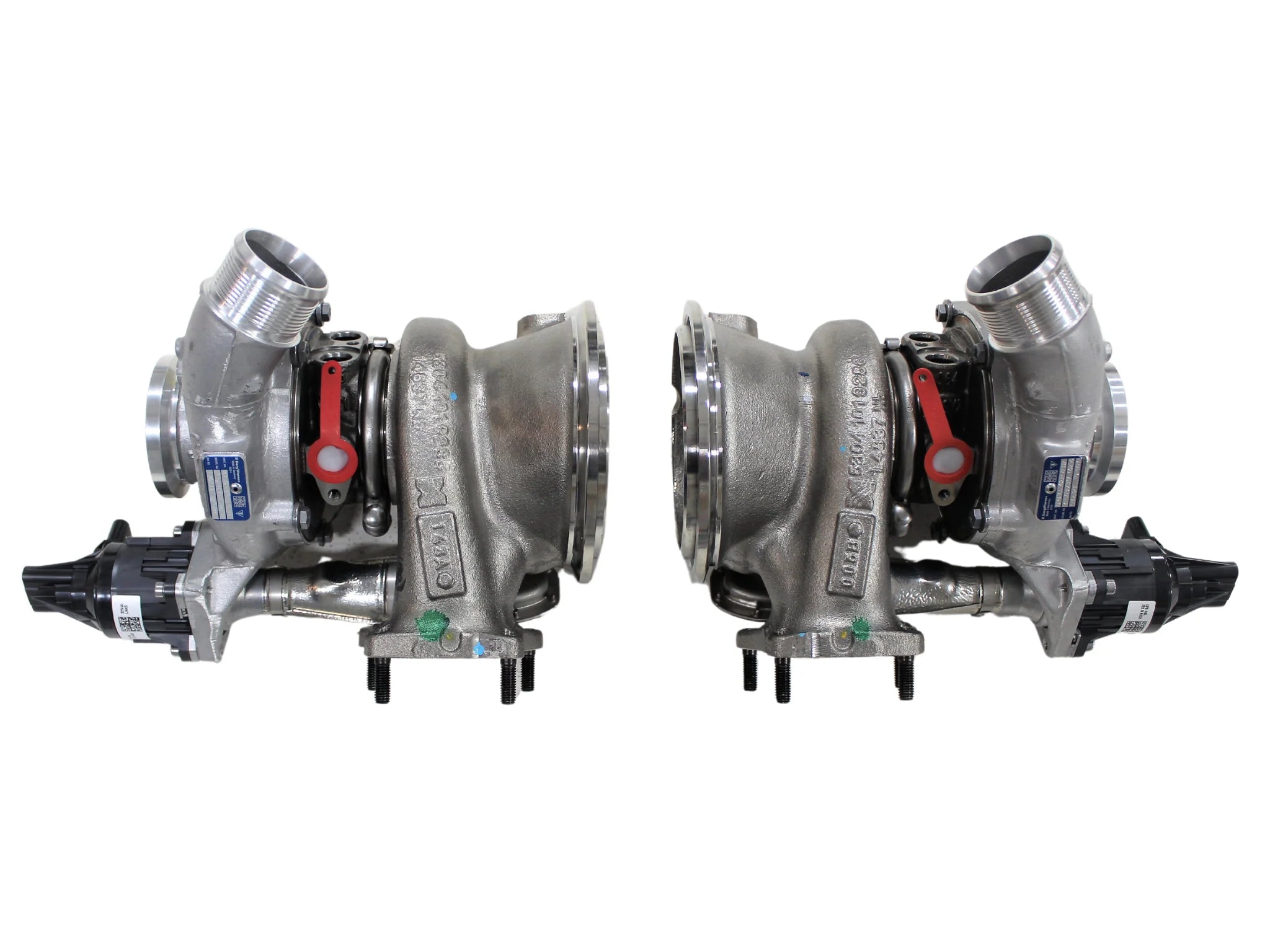

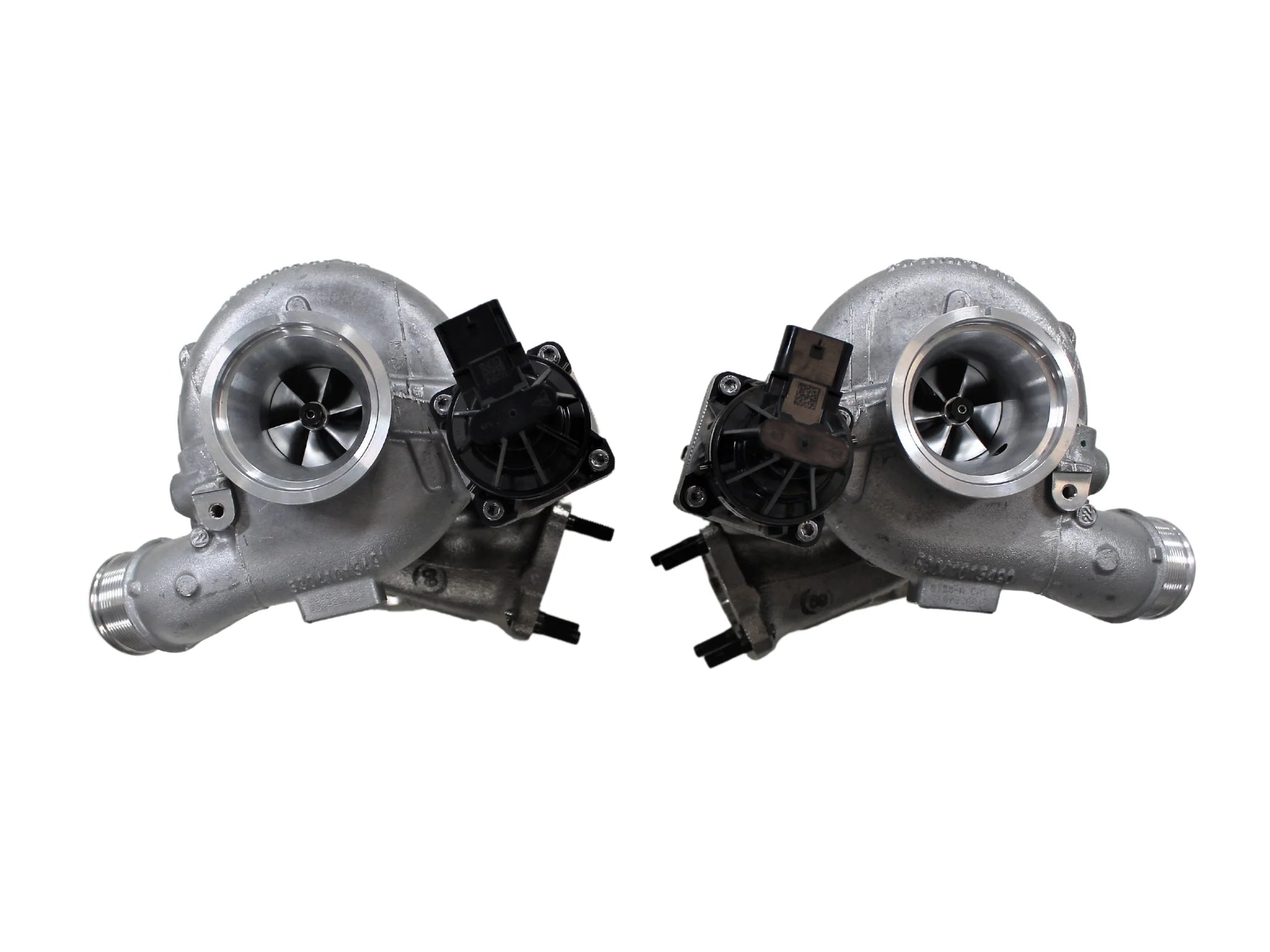

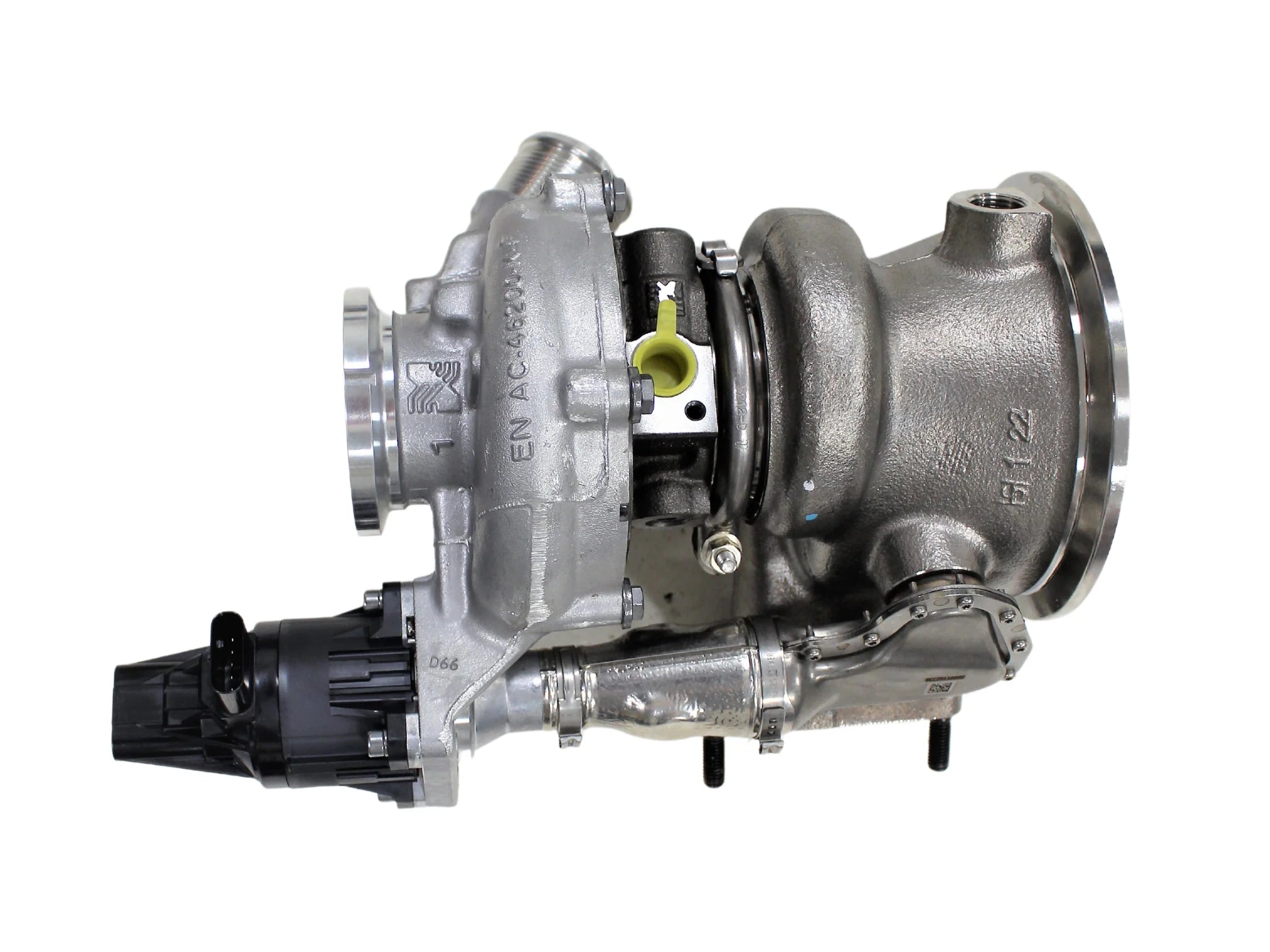

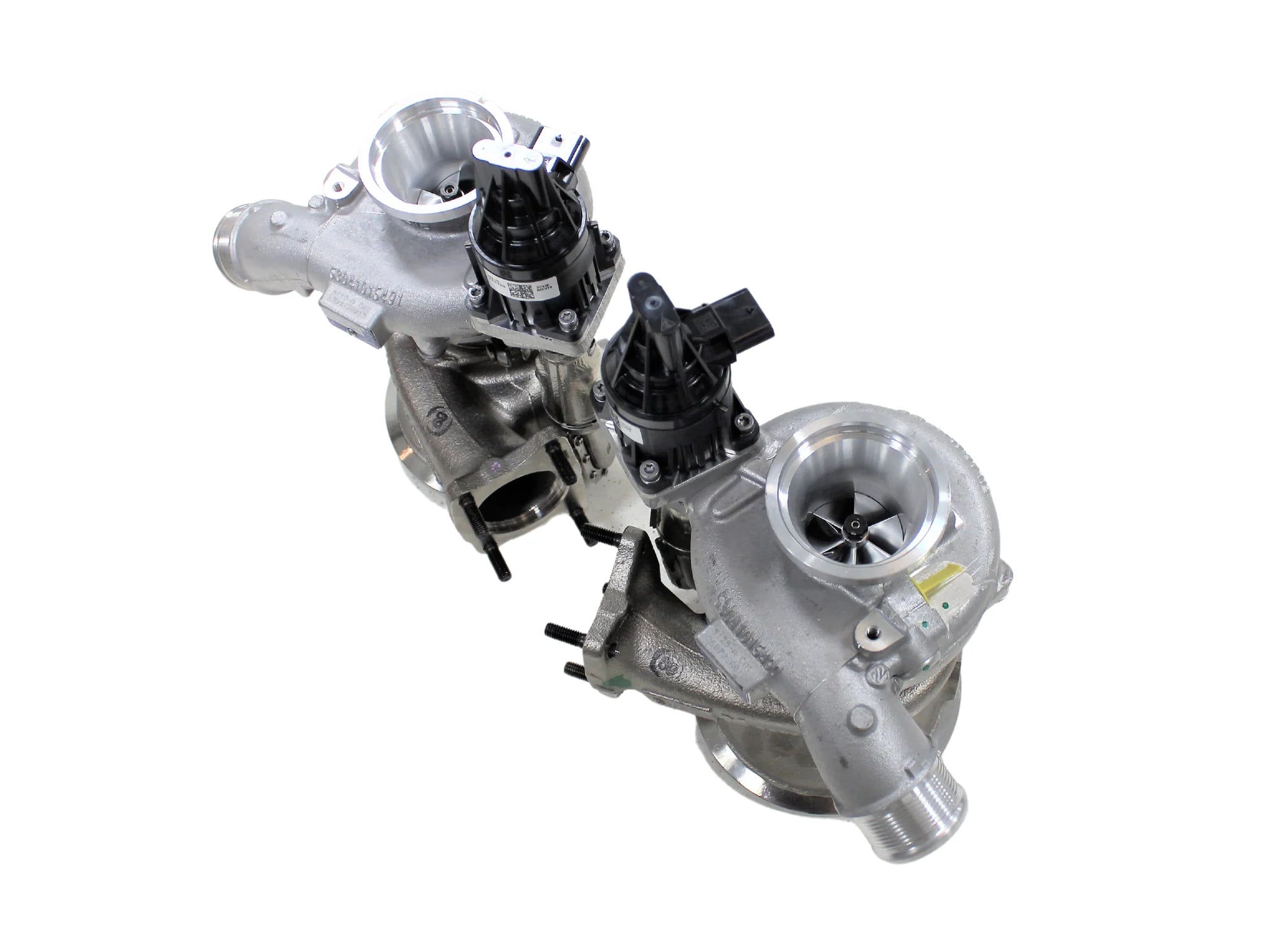

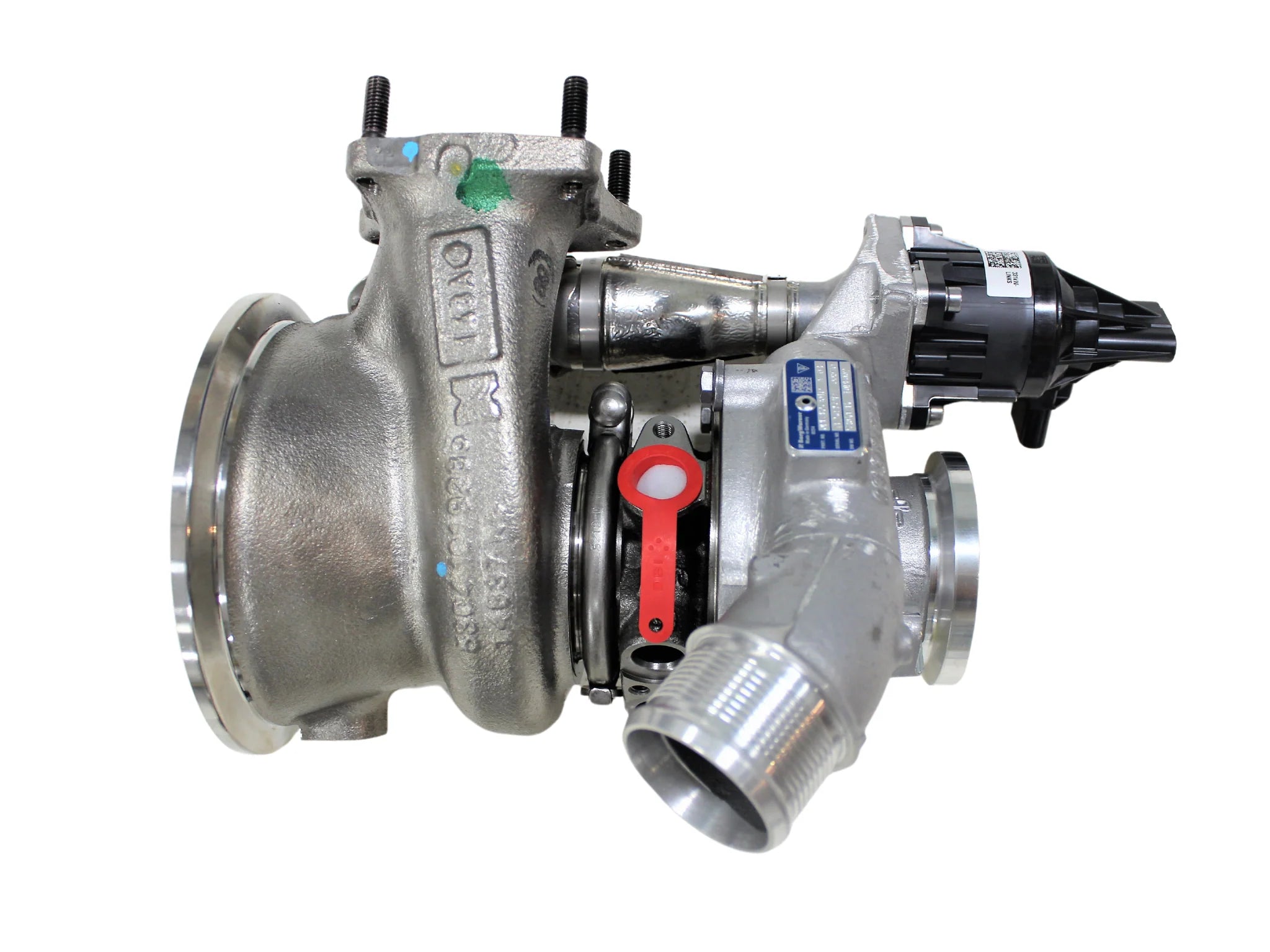

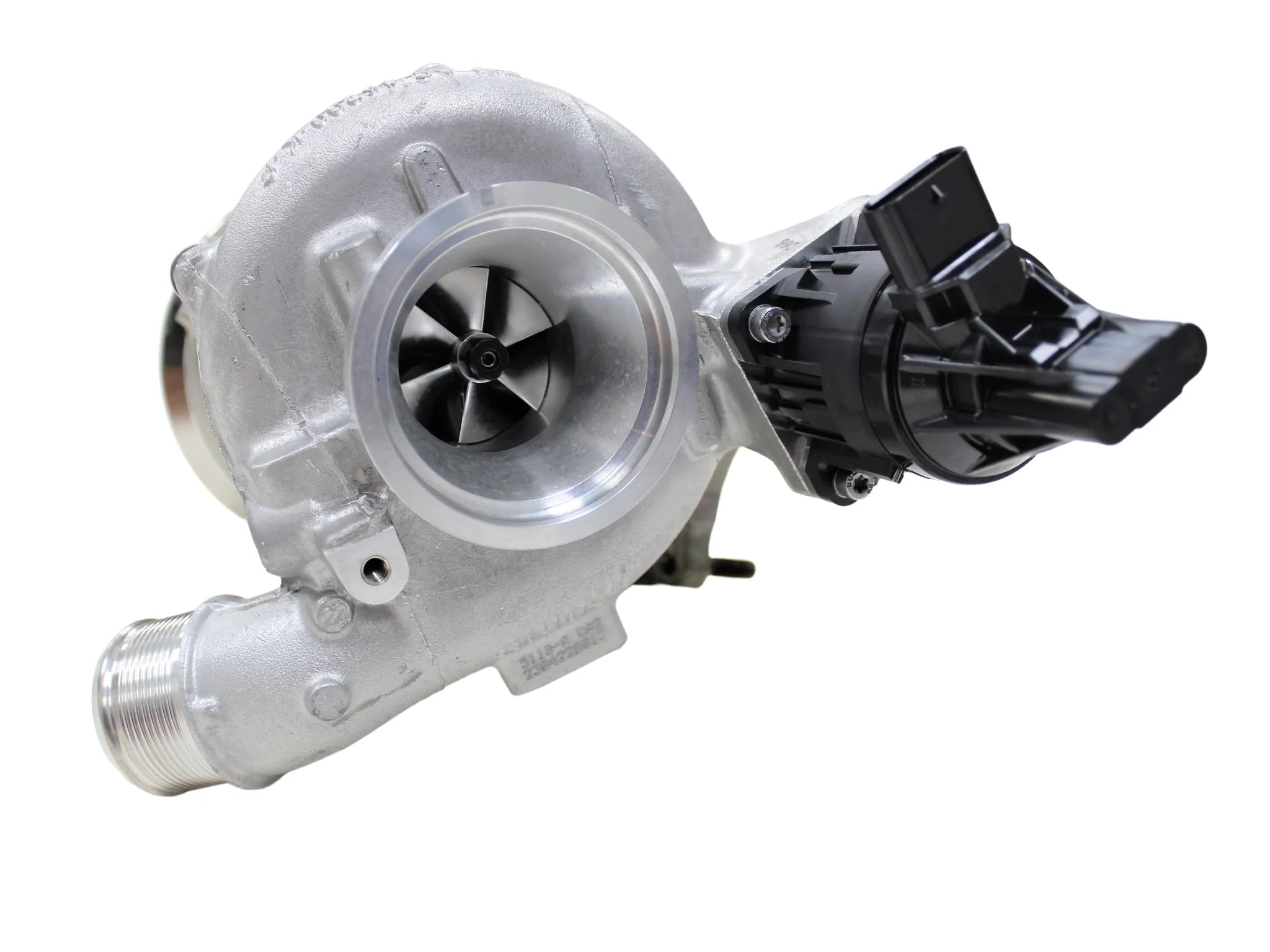

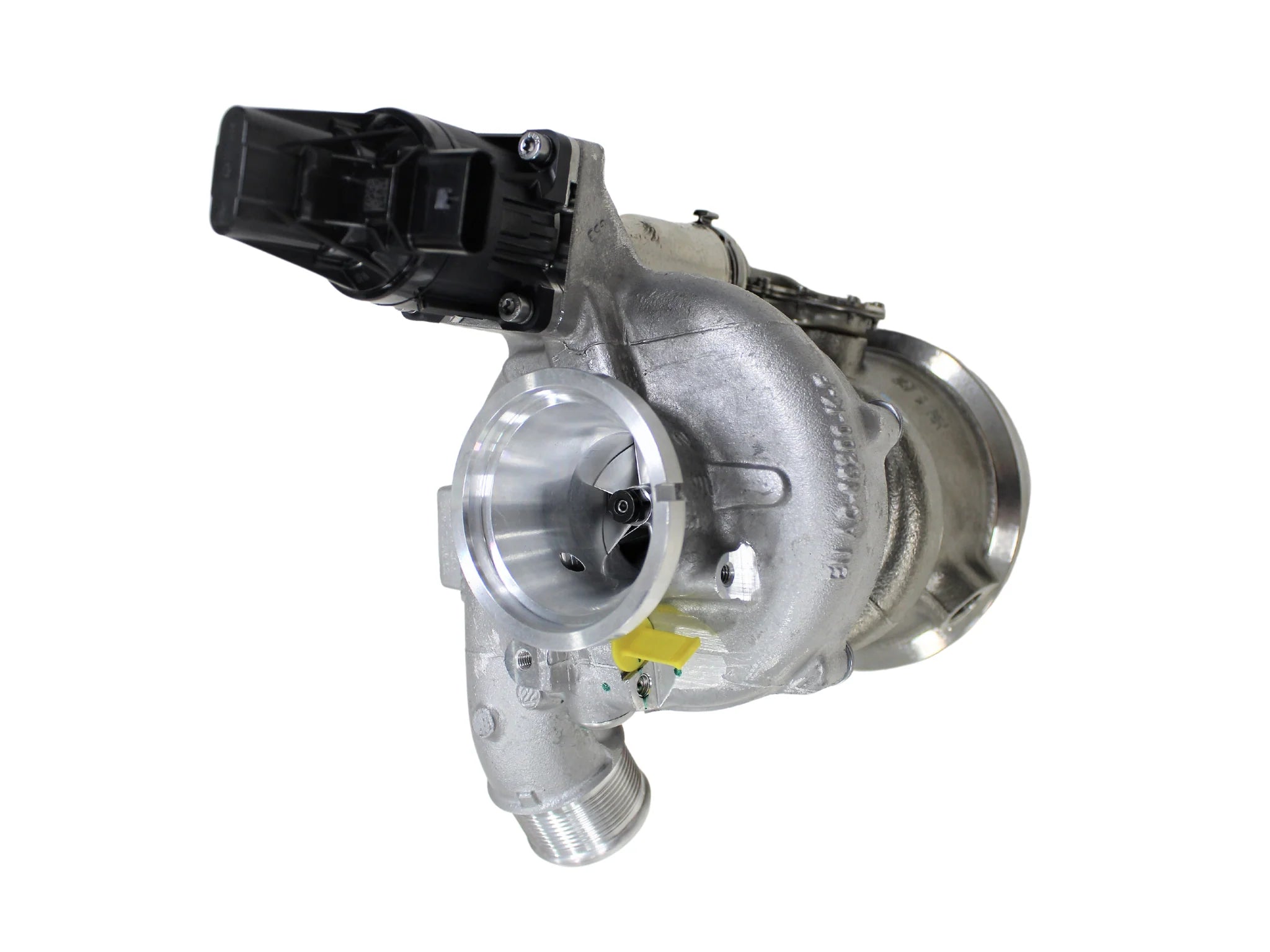

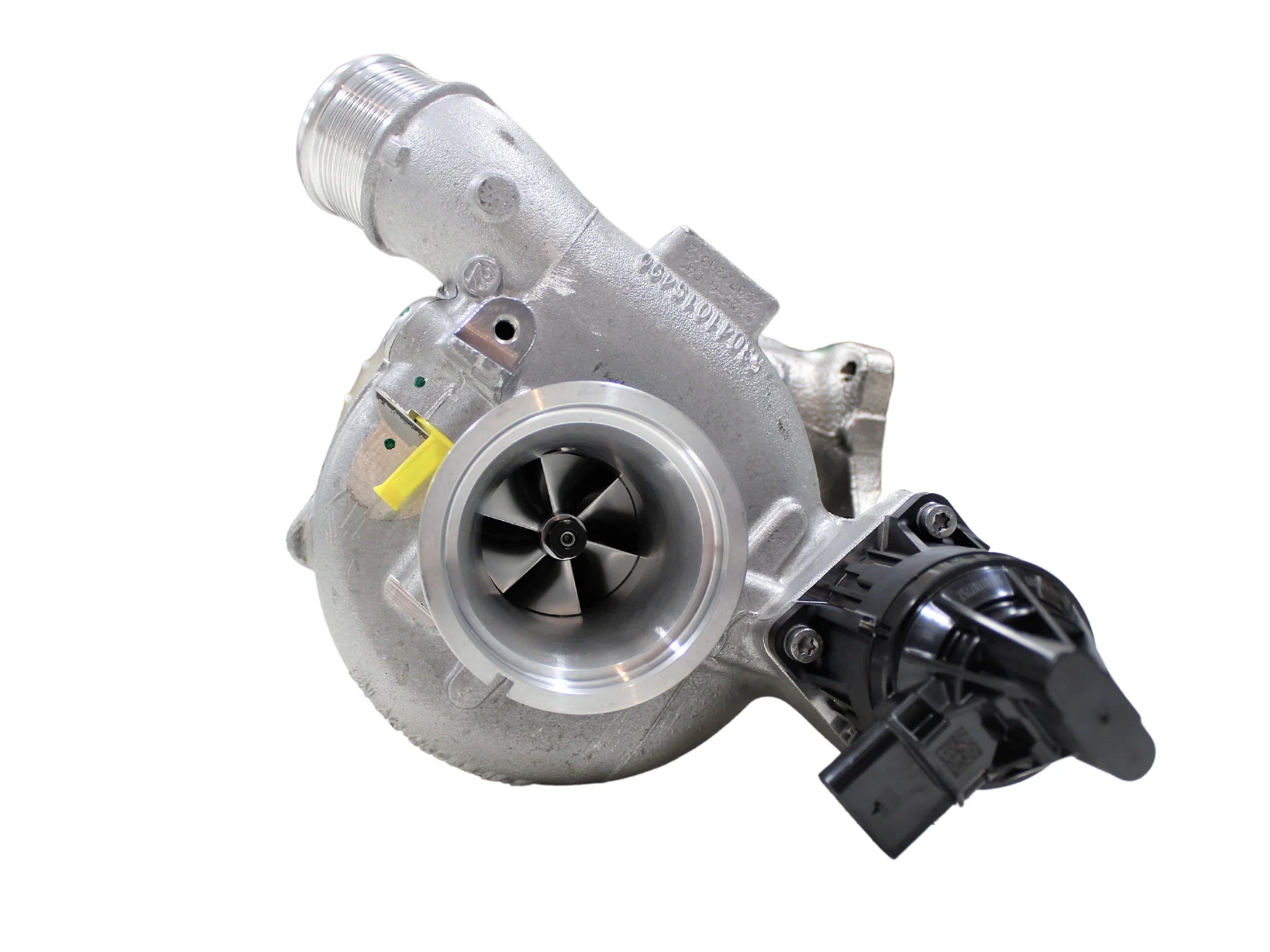

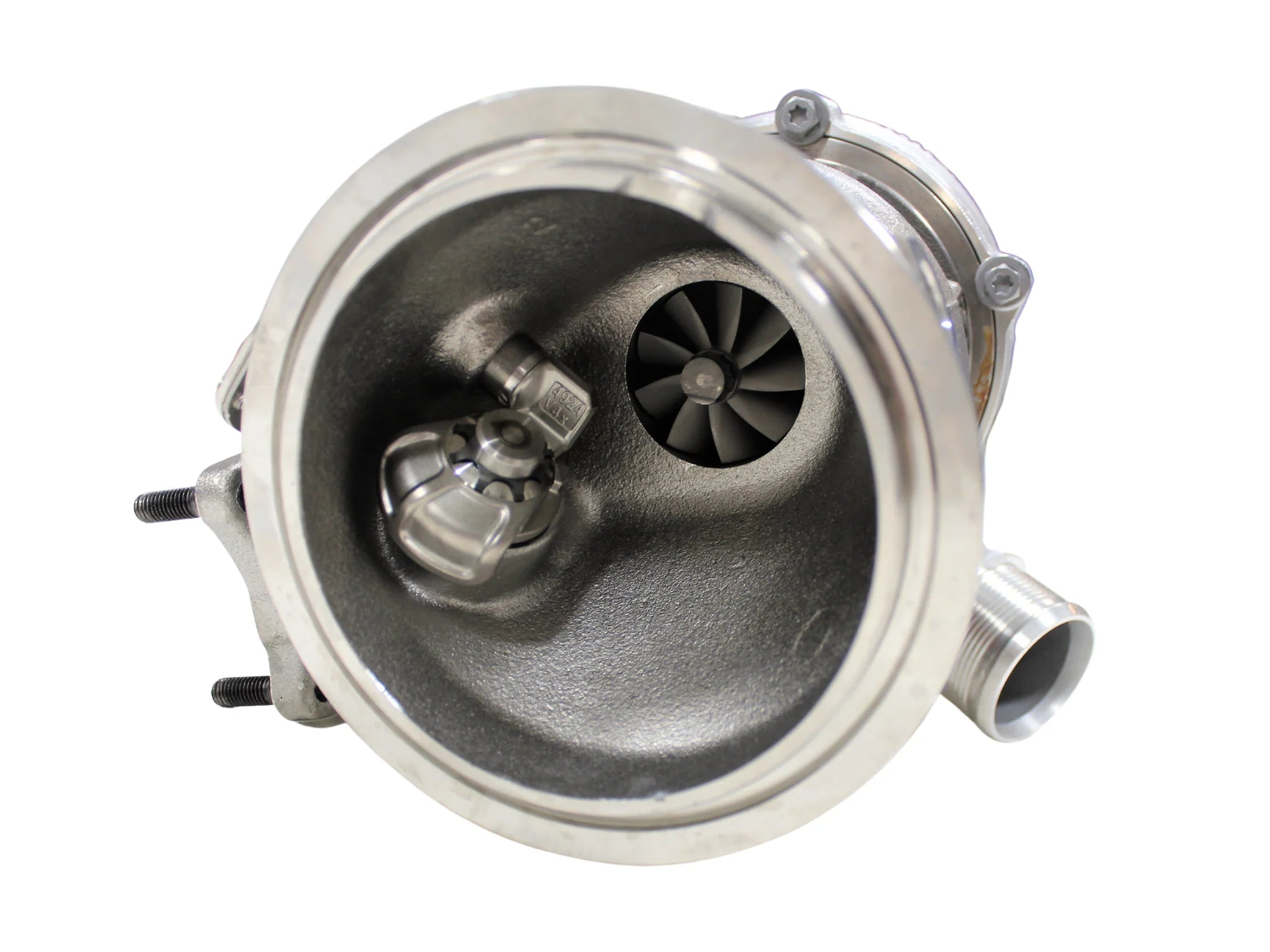

  • OEM Carrera GTS Turbochargers
  • High Reliability
  • Simple Solution
  • 600-625HP with M-Engineering Tune
  • Tested at 200MPH+

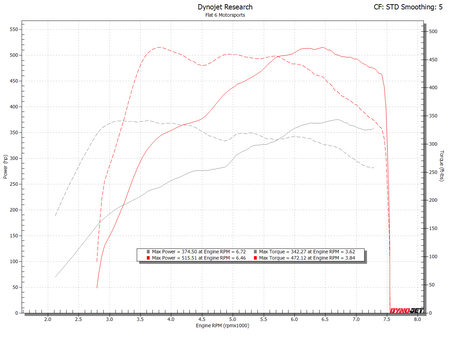

Dyno Figures

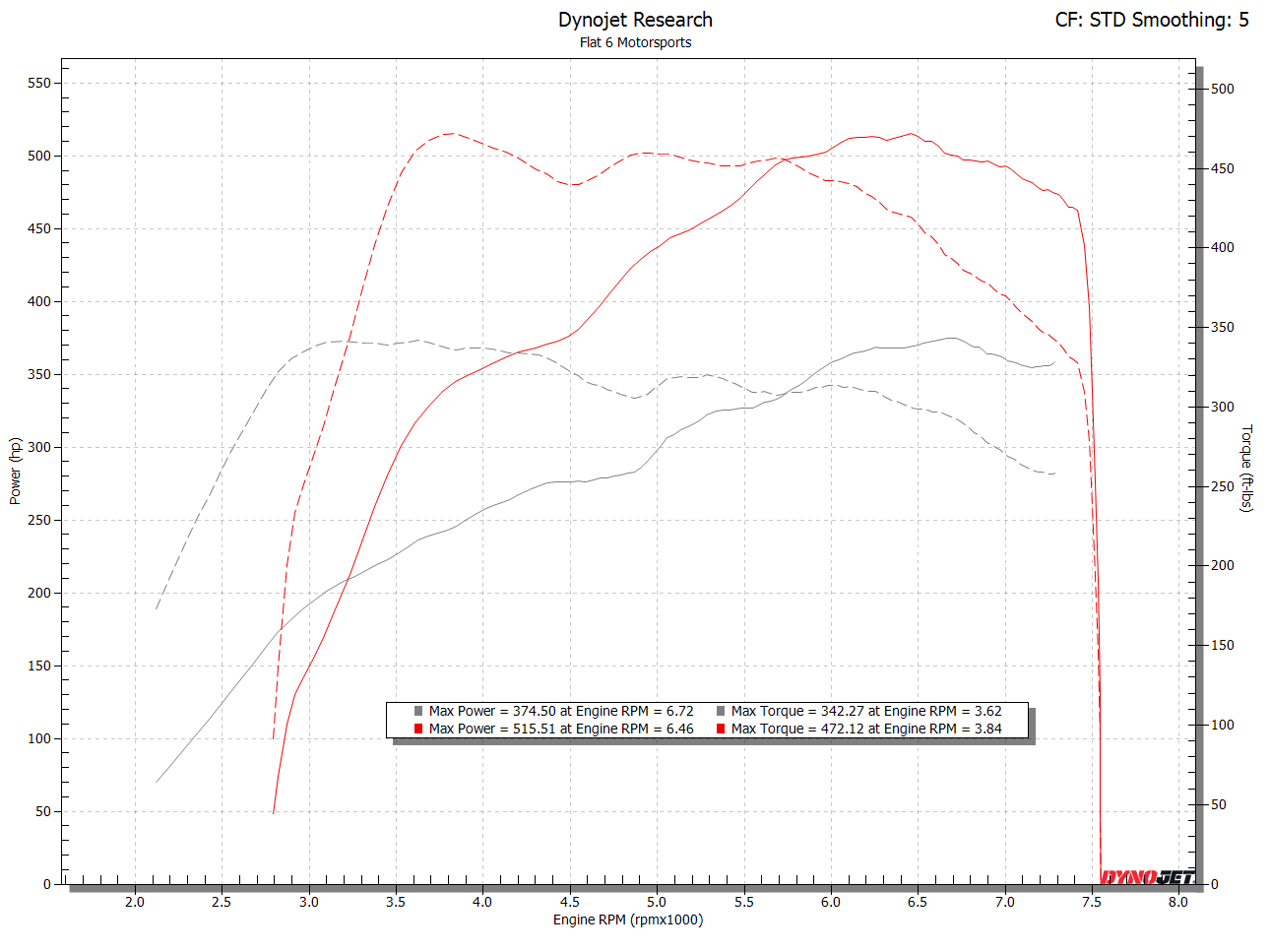

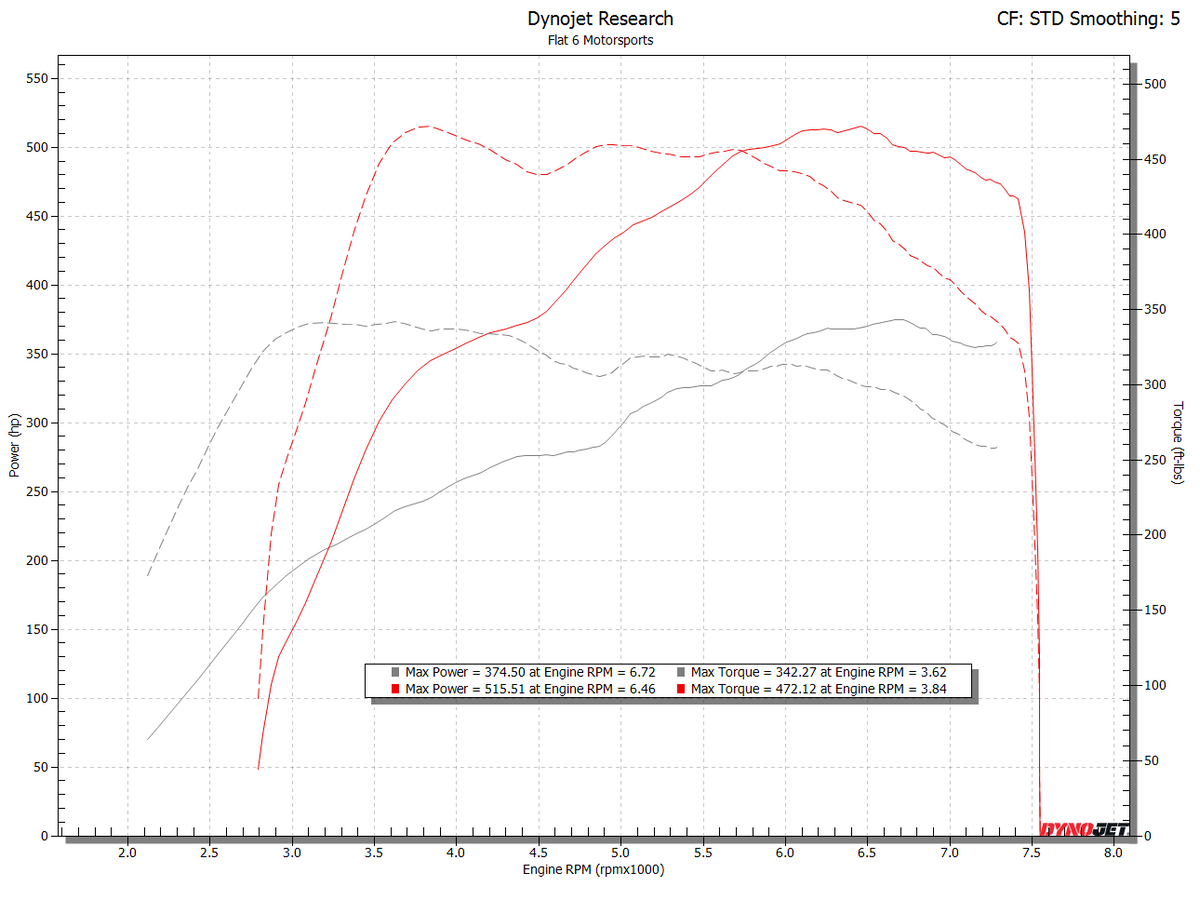

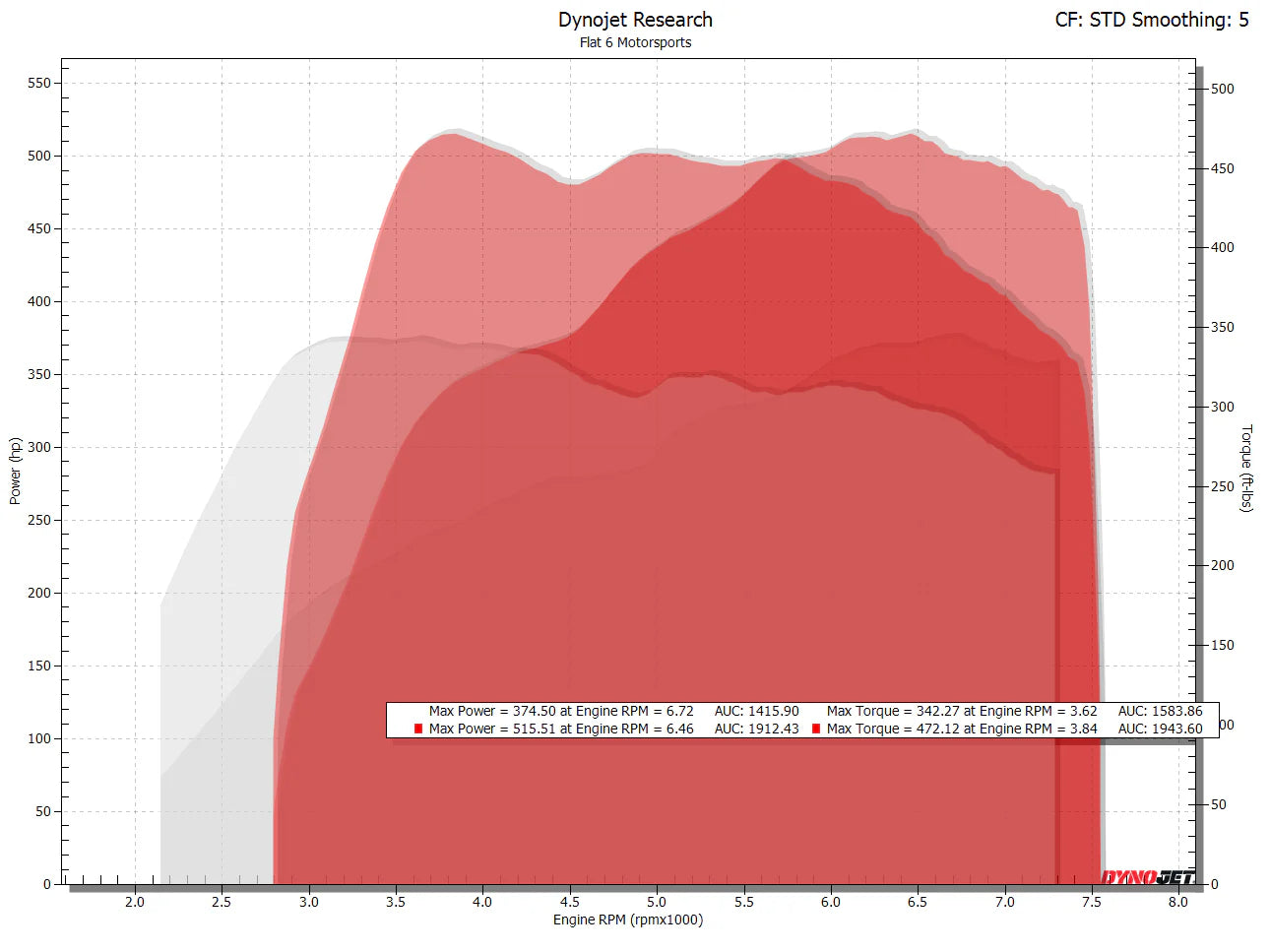

Flat 6 Motorsports - 992 Carrera Stage 3 Dyno

Performance Data

1/4 Mile Performance Data - 992 Carrera with Flat 6 Motorsports GTS Turbo Kit

Lap Times - Stock Base vs GTS Turbos (992)

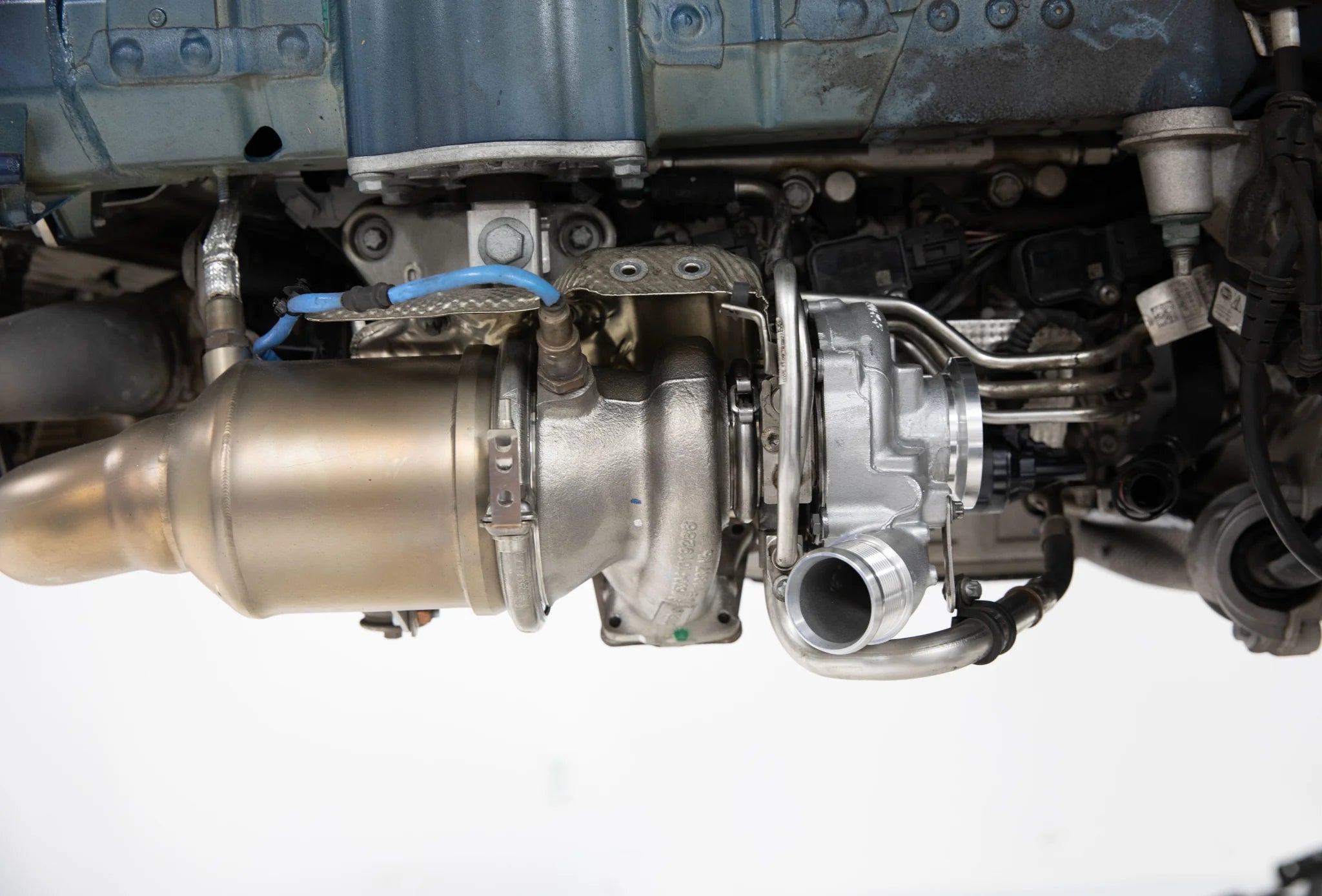

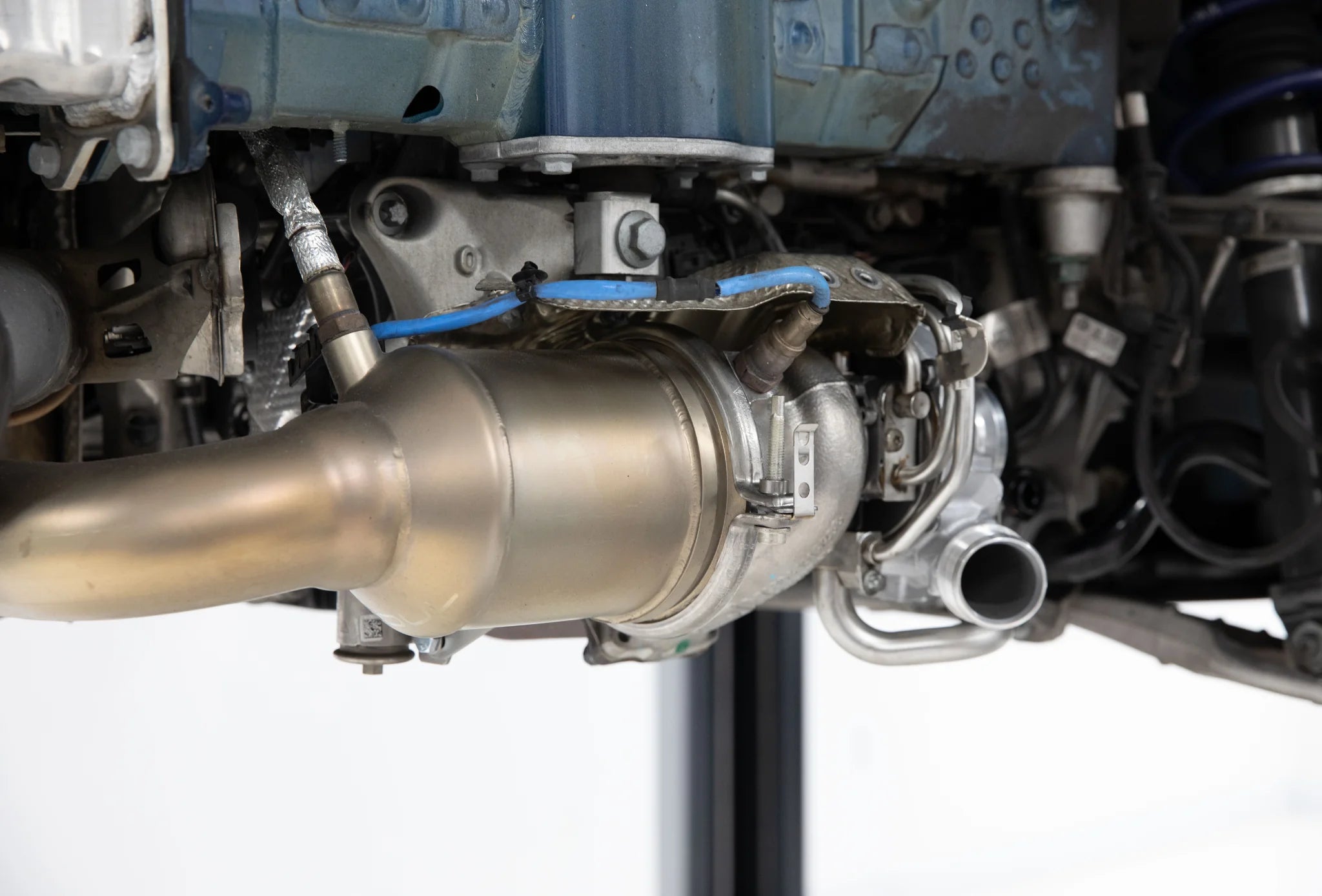

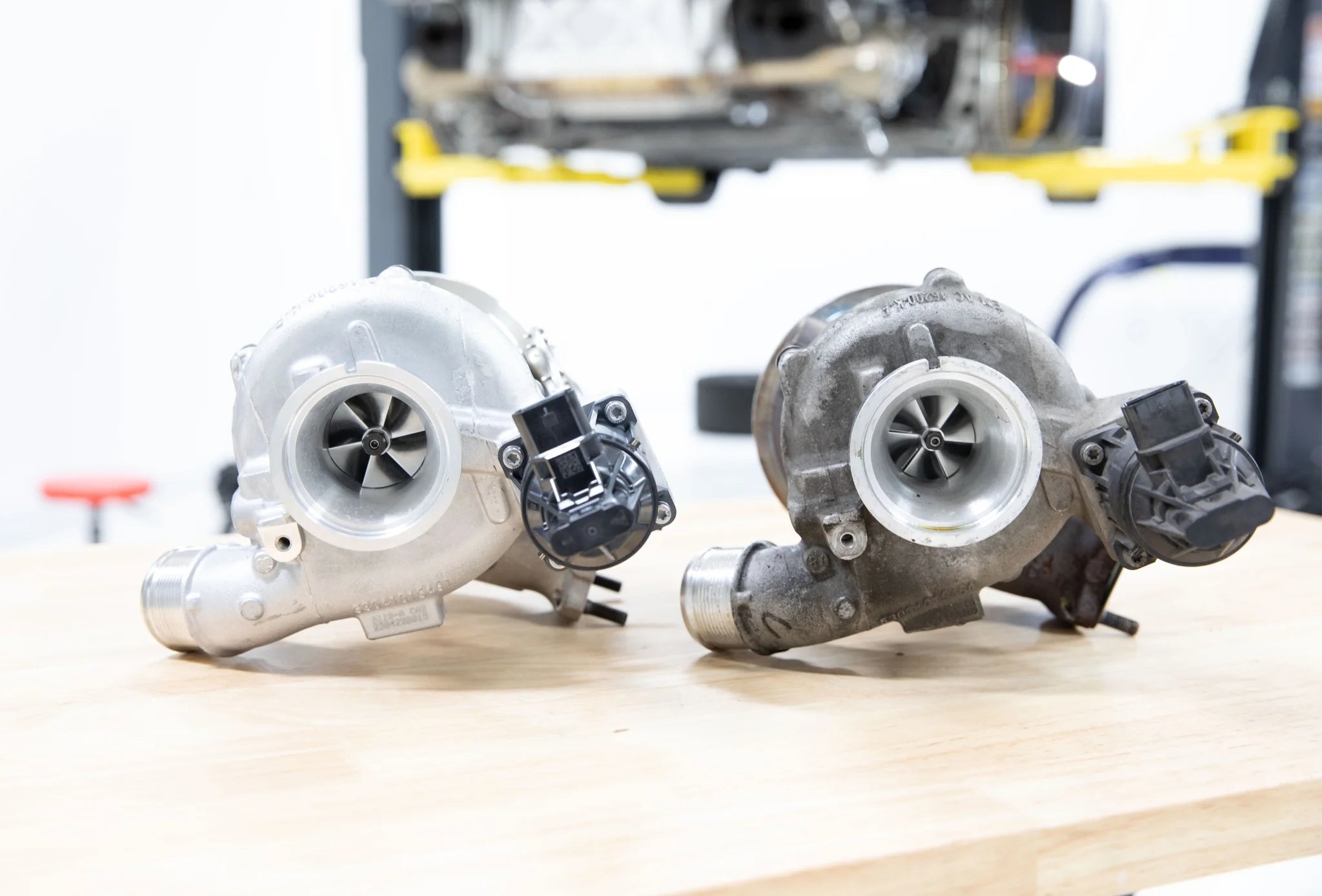

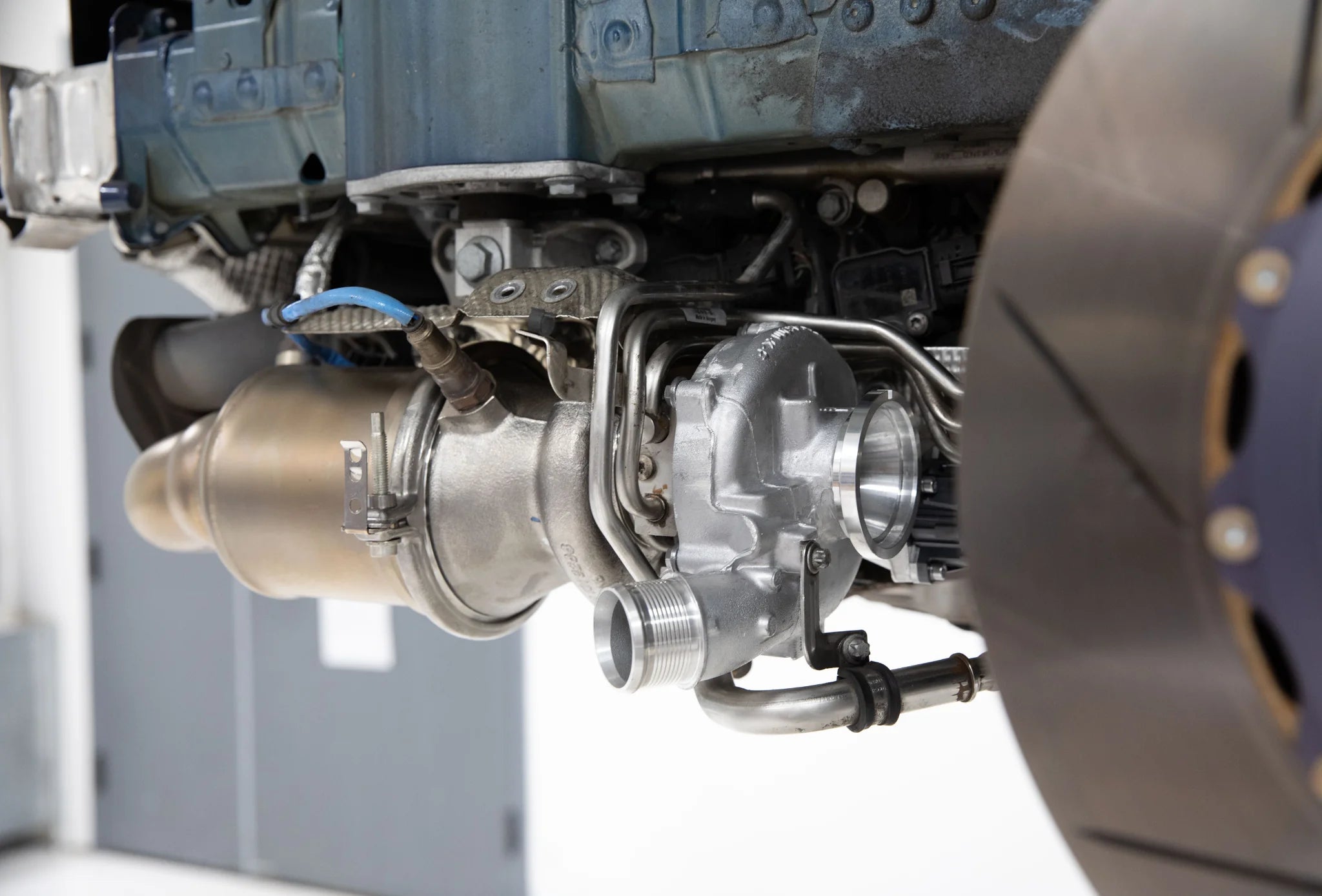

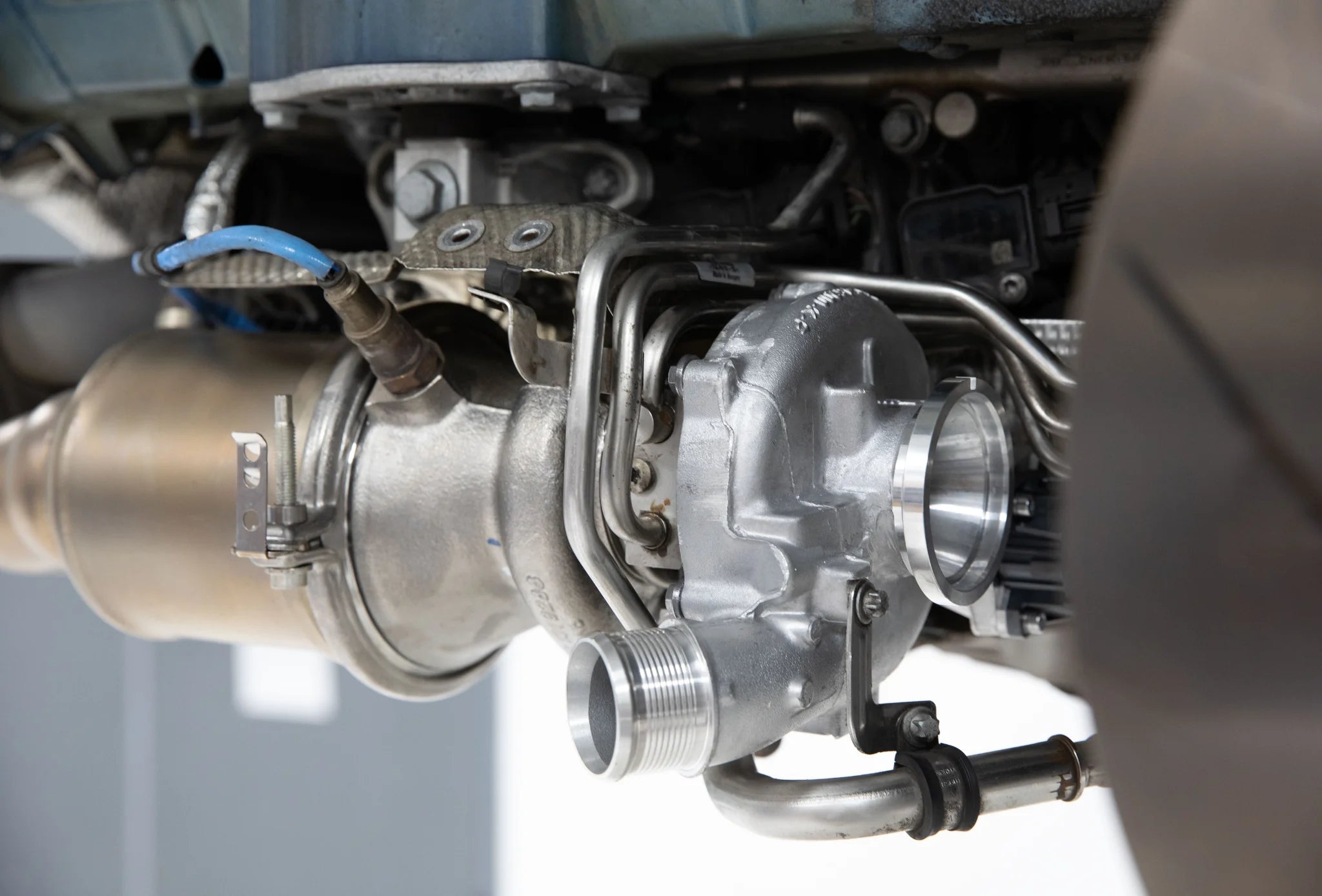

The GTS Turbochargers are a direct replacement and simple swap. They reuse all of the same hardware. Install can take place in about 4-5 hours. Tuning is necessary.

We recommend replacing the O-rings. Inspect V-bands, seals and fasteners, replace as needed. Below is a complete list of OEM components:

Part Number Description Quantity
PAF.008.288 O-ring, Oil feed & vent to turbo 8
PAF.008.288 O-ring, Coolant lines to turbo 8
PAF.008.276 O-ring, Oil drain lines 4
9P1.253.725.A V-band, Turbo to cat 2
9A7.253.115.00 Seal, Turbo to cat 2
0PB.145.039.A Gasket, Turbo to manifold 2
PAF.007.634 Nut, Turbo to manifold 8
